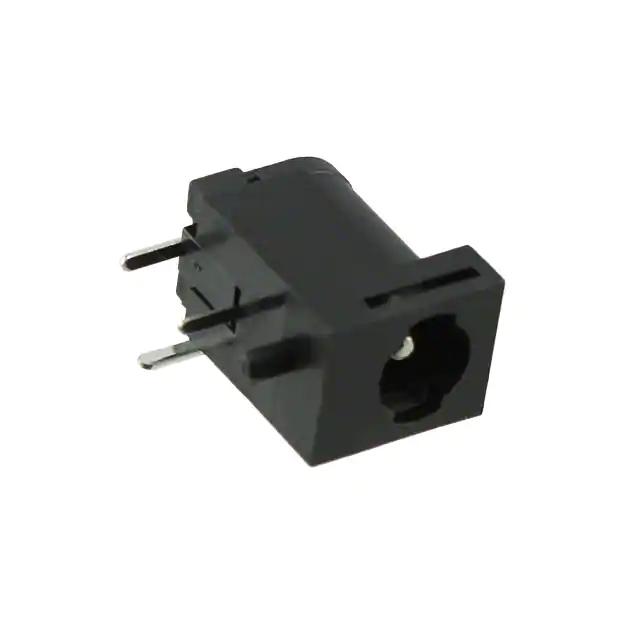

CUI Devices PJ-059A

Enrgtech Part No: ET18663441
|
Manufacturer Part No:
PJ-059A
|
Manufacturer: CUI Devices

Product Information

Body Orientation:

Horizontal

Mounting Type:

Through Hole

Manufacturer Standard Lead Time:

14 Weeks

Detailed Description:

Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Through Hole, Right Angle

Actual Diameter:

0.079" (2.00mm ID), 0.224" (5.70mm OD)

Voltage - Rated:

24VDC

Housing Material:

Polybutylene Terephthalate (PBT)

Operating Temperature:

-25°C ~ 85°C

Contact Material - Plating:

Tin

Shielding:

Unshielded

Number of Positions/Contacts:

2 Conductors, 3 Contacts

Internal Switch(s):

Single Switch, Normally Closed

Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is PJ-059A. It has horizontal body orientation. The product is available in through hole configuration. It has typical 14 weeks of manufacturer standard lead time. It features power barrel connector jack 2.10mm id (0.083"), 5.50mm od (0.217") through hole, right angle. Its actual diameter is 0.079" (2.00mm id), 0.224" (5.70mm od). It also exhibits voltage rating of 24vdc. The product also features robust polybutylene terephthalate (pbt) housing material. The product has -25°c ~ 85°c operating temperature range. While the contact is tin. Furthermore, the product is shielded with unshielded. The product consists of 2 conductors, 3 contacts positions or contacts. Internal switch options: single switch, normally closed. The product has 2.10mm id (0.083"), 5.50mm od (0.217") industrial recognised mating diameter. It carries ul94 v-0 of material flammability rating. The cui devices's product offers user-desired applications. In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. The product features solder termination style. Additionally, the product's output is 2.5a. The body has a classic black colour. The splendid features of the product include board guide. The product is available in through hole, right angle configuration. The product has 0.386" (9.80mm) mating length or depth. In addition, tray is the available packaging type of the product. The product is made from sturdy brass, copper alloy materials.

Datasheet - PJ-059A(Technical Reference)

Multiple Devices Plating 19/Sep/2014(PCN Design/Specification)

PJ-059A(Datasheets)
