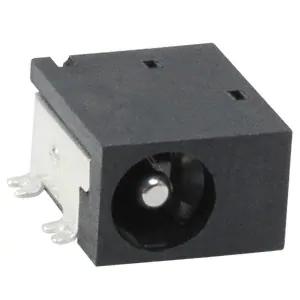

CUI Devices PJ-018H-SMT-TR
Product Information
Body Orientation:
Horizontal
Mounting Type:
Surface Mount
Manufacturer Standard Lead Time:
14 Weeks
Detailed Description:
Power Barrel Connector Jack 1.70mm ID (0.067"), 4.00mm OD (0.157") EIAJ-2 Surface Mount, Right Angle
Actual Diameter:
0.065" (1.65mm ID), 0.173" (4.40mm OD)
Voltage - Rated:
24VDC
Housing Material:
Polyamide (PA6T), Nylon 6T
Operating Temperature:
-25°C ~ 85°C
Contact Material - Plating:
Silver
Base Part Number:
PJ-018
Shielding:
Unshielded
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Internal Switch(s):
Single Switch, Normally Closed
Industry Recognized Mating Diameter:
1.70mm ID (0.067"), 4.00mm OD (0.157") EIAJ-2
Material Flammability Rating:
UL94 V-0
Manufacturer:
CUI Devices
Gender:
Male
Connector Type:
Jack
Termination:
Solder
Current Rating (Amps):
5A
Body Color:
Black
Features:
Board Guide
Mounting Type:
Surface Mount, Right Angle
Mating Length/Depth:
0.244" (6.20mm)
Packaging:
Cut Tape (CT)
Customer Reference:
Contact Material:
Brass, Copper Alloy
Checking for live stock
FAQs
Yes. You can also search PJ-018H-SMT-TR on website for other similar products.
We accept all major payment methods for all products including ET18663384. Please check your shopping cart at the time of order.
You can order CUI Devices brand products with PJ-018H-SMT-TR directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Barrel - Power Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of CUI Devices PJ-018H-SMT-TR. You can also check on our website or by contacting our customer support team for further order details on CUI Devices PJ-018H-SMT-TR.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18663384 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "CUI Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18663384.
Yes. We ship PJ-018H-SMT-TR Internationally to many countries around the world.
This is manufactured by CUI Devices. The manufacturer part number is PJ-018H-SMT-TR. It has horizontal body orientation. The product is available in surface mount configuration. It has typical 14 weeks of manufacturer standard lead time. It features power barrel connector jack 1.70mm id (0.067"), 4.00mm od (0.157") eiaj-2 surface mount, right angle. Its actual diameter is 0.065" (1.65mm id), 0.173" (4.40mm od). It also exhibits voltage rating of 24vdc. The product also features robust polyamide (pa6t), nylon 6t housing material. The product has -25°c ~ 85°c operating temperature range. While the contact is silver. Base Part Number: pj-018. Furthermore, the product is shielded with unshielded. The product consists of 2 conductors, 3 contacts positions or contacts. Internal switch options: single switch, normally closed. The product has 1.70mm id (0.067"), 4.00mm od (0.157") eiaj-2 industrial recognised mating diameter. It carries ul94 v-0 of material flammability rating. The cui devices's product offers user-desired applications. In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. The product features solder termination style. Additionally, the product's output is 5a. The body has a classic black colour. The splendid features of the product include board guide. The product is available in surface mount, right angle configuration. The product has 0.244" (6.20mm) mating length or depth. In addition, cut tape (ct) is the available packaging type of the product. The product is made from sturdy brass, copper alloy materials.
