Body Orientation:
Vertical
Mounting Type:
Panel Mount
Actual Diameter:
0.098" (2.50mm ID), 0.224" (5.70mm OD)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Thread Size:
-
Operating Temperature:
-40°C ~ 70°C
Industry Recognized Mating Diameter:
2.50mm ID (0.098"), 5.50mm OD (0.217")
Internal Switch(s):
Single Switch, Normally Closed
Shielding:
Unshielded
Voltage - Rated:
16VDC
REACH Status:
REACH Unaffected

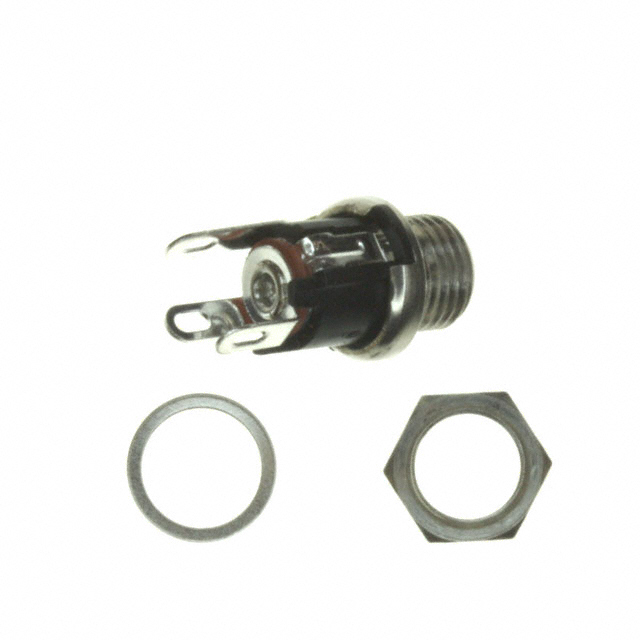

Includes:
3 pcs - 1 Connector, 1 Nut, 1 Washer
edacadModel:
PJ-005B Models
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/172263
Manufacturer:
CUI Devices
Insulation Color:
-
Gender:
Male
Connector Type:
Jack
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
Brass
Termination:
Solder Eyelet(s)
standardLeadTime:
19 Weeks
Current Rating (Amps):
5 A
Housing Material:
Polybutylene Terephthalate (PBT)
Body Color:
Silver, Black
Ingress Protection:
-
Features:
Mounting Hardware, Thread Lock
Mounting Type:
Panel Mount, Through Hole
Mating Length/Depth:
0.354" (9.00mm)
Series:
-
Packaging:
Bag
Contact Material - Plating:
Silver
Contact Material:
Brass, Phosphor Bronze
Base Product Number:
PJ-005
ECCN:
EAR99
