CUI Devices PJ-102A

PJ-102A CUI Devices
PJ-102A
PJ-102A
CUI Devices

Product Information

Body Orientation:
Horizontal
Mounting Type:
Through Hole
Manufacturer Standard Lead Time:
14 Weeks
Detailed Description:

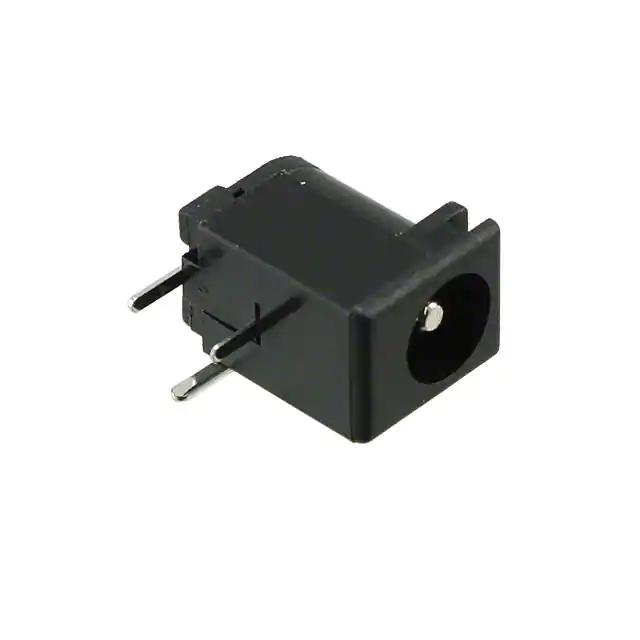

Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Through Hole, Right Angle
Actual Diameter:
0.079" (2.00mm ID), 0.256" (6.50mm OD)
Voltage - Rated:
24VDC
Housing Material:
Polybutylene Terephthalate (PBT)
Operating Temperature:
-25°C ~ 85°C
Contact Material - Plating:
Tin
Base Part Number:
PJ-102
Shielding:
Unshielded
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Internal Switch(s):
Single Switch, Normally Closed
Industry Recognized Mating Diameter:
2.00mm ID (0.079"), 5.50mm OD (0.217")
Material Flammability Rating:
UL94 V-0
Manufacturer:
CUI Devices
Gender:
Male
Connector Type:
Jack
Termination:
Solder
Current Rating (Amps):
2.5A
Body Color:
Black
Mounting Type:
Through Hole, Right Angle
Mating Length/Depth:
0.354" (9.00mm)
Packaging:
Tray
Customer Reference:
Contact Material:
Brass, Copper Alloy
RoHs Compliant
Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is PJ-102A. It has horizontal body orientation. The product is available in through hole configuration. It has typical 14 weeks of manufacturer standard lead time. It features power barrel connector jack 2.00mm id (0.079"), 5.50mm od (0.217") through hole, right angle. Its actual diameter is 0.079" (2.00mm id), 0.256" (6.50mm od). It also exhibits voltage rating of 24vdc. The product also features robust polybutylene terephthalate (pbt) housing material. The product has -25°c ~ 85°c operating temperature range. While the contact is tin. Base Part Number: pj-102. Furthermore, the product is shielded with unshielded. The product consists of 2 conductors, 3 contacts positions or contacts. Internal switch options: single switch, normally closed. The product has 2.00mm id (0.079"), 5.50mm od (0.217") industrial recognised mating diameter. It carries ul94 v-0 of material flammability rating. The cui devices's product offers user-desired applications. In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. The product features solder termination style. Additionally, the product's output is 2.5a. The body has a classic black colour. The product is available in through hole, right angle configuration. The product has 0.354" (9.00mm) mating length or depth. In addition, tray is the available packaging type of the product. The product is made from sturdy brass, copper alloy materials.
