CUI Devices PJ-067A

PJ-067A CUI Devices
PJ-067A
CUI Devices

Product Information

Body Orientation:
Horizontal
Mounting Type:
Panel Mount
Manufacturer Standard Lead Time:
12 Weeks
Detailed Description:
Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Panel Mount, Through Hole, Right Angle
Actual Diameter:
0.079" (2.00mm ID), 0.224" (5.70mm OD)
Voltage - Rated:
24VDC
Mounting Feature:
Bulkhead - Front Side Nut
Thread Size:
5/16"-32
Operating Temperature:
-25°C ~ 70°C
Internal Switch(s):
Single Switch, Normally Closed
Base Part Number:
PJ-067
Shielding:
Unshielded
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Includes:

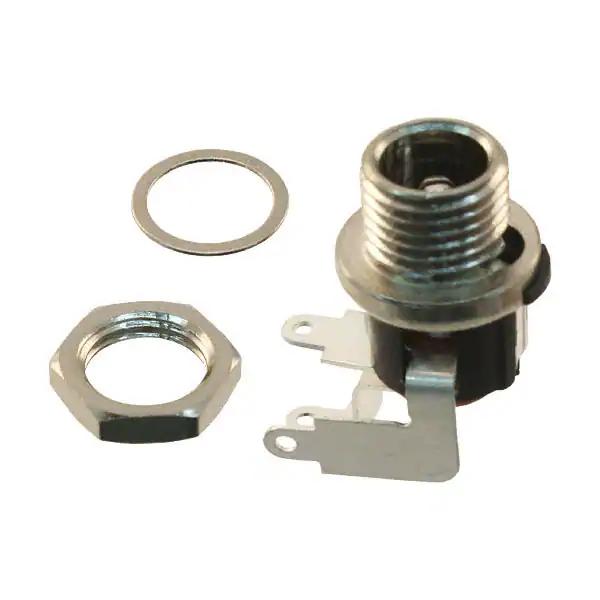

3 pcs - 1 Connector, 1 Nut, 1 Washer
Industry Recognized Mating Diameter:
2.10mm ID (0.083"), 5.50mm OD (0.217")
Material Flammability Rating:
UL94 V-0
Manufacturer:
CUI Devices
Contact Material - Plating:
Silver
Gender:
Male
Connector Type:
Jack
Body Material:
Brass
Termination:
Solder Eyelet(s)
Current Rating (Amps):
5A
Housing Material:
Polybutylene Terephthalate (PBT)
Body Color:
Black
Features:
Mounting Hardware, Thread Lock
Mounting Type:
Panel Mount, Through Hole, Right Angle
Mating Length/Depth:
0.331" (8.40mm)
Packaging:
Bag
Customer Reference:
Contact Material:
Brass, Phosphor Bronze
RoHs Compliant
Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is PJ-067A. It has horizontal body orientation. The product is available in panel mount configuration. It has typical 12 weeks of manufacturer standard lead time. It features power barrel connector jack 2.10mm id (0.083"), 5.50mm od (0.217") panel mount, through hole, right angle. Its actual diameter is 0.079" (2.00mm id), 0.224" (5.70mm od). It also exhibits voltage rating of 24vdc. The product's mounting feature includes bulkhead - front side nut. It has a typical thread size of 5/16"-32. The product has -25°c ~ 70°c operating temperature range. Internal switch options: single switch, normally closed. Base Part Number: pj-067. Furthermore, the product is shielded with unshielded. The product consists of 2 conductors, 3 contacts positions or contacts. The product is also supplied with 3 pcs - 1 connector, 1 nut, 1 washer. The product has 2.10mm id (0.083"), 5.50mm od (0.217") industrial recognised mating diameter. It carries ul94 v-0 of material flammability rating. The cui devices's product offers user-desired applications. While the contact is silver. In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. The product's body is nicely designed from brass materials. The product features solder eyelet(s) termination style. Additionally, the product's output is 5a. The product also features robust polybutylene terephthalate (pbt) housing material. The body has a classic black colour. The splendid features of the product include mounting hardware, thread lock. The product is available in panel mount, through hole, right angle configuration. The product has 0.331" (8.40mm) mating length or depth. In addition, bag is the available packaging type of the product. The product is made from sturdy brass, phosphor bronze materials.
