Actual Diameter:
0.083" (2.10mm ID), 0.217" (5.50mm OD)
HTSUS:
8536.69.4030
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Thread Size:
5/16"-32
Operating Temperature:
-40°C ~ 65°C
Industry Recognized Mating Diameter:
2.10mm ID (0.083"), 5.50mm OD (0.217")
Internal Switch(s):
Single Switch, Normally Closed
Shielding:
Unshielded
Voltage - Rated:
30VDC
Insulation Color:
-
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
721RA Models
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Material Flammability Rating:
-
edacadModelUrl:
/en/models/8571717
Package:
Bulk
Gender:
Male
Connector Type:
Jack
Moisture Sensitivity Level (MSL):
Not Applicable
Body Material:
Copper Alloy
Termination:
Kinked Pin, Solder Eyelet
standardLeadTime:
8 Weeks
Current Rating (Amps):
5 A
Housing Material:
Thermoplastic
Body Color:
Red, Silver
Ingress Protection:
-
Features:
Mounting Hardware, Thread Lock
Mounting Type:
Panel Mount, Through Hole, Right Angle
Mating Length/Depth:
0.374" (9.50mm)
Series:
-
Contact Material - Plating:
Silver
Contact Material:
Copper Alloy
ECCN:
EAR99

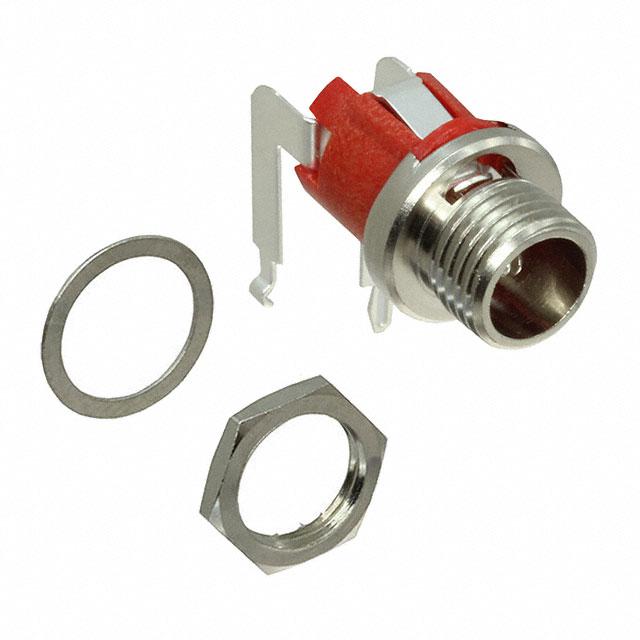

This is manufactured by Switchcraft Inc.. The manufacturer part number is 721RA. Its actual diameter is 0.083" (2.10mm id), 0.217" (5.50mm od). It is assigned with possible HTSUS value of 8536.69.4030. The product is rohs3 compliant. The product's mounting feature includes bulkhead - front side nut. It has a typical thread size of 5/16"-32. The product has -40°c ~ 65°c operating temperature range. The product has 2.10mm id (0.083"), 5.50mm od (0.217") industrial recognised mating diameter. Internal switch options: single switch, normally closed. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 30vdc. In addition, it is reach unaffected. The product consists of 2 conductors, 3 contacts positions or contacts. It is shipped in bulk package . In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. The product's body is nicely designed from copper alloy materials. The product features kinked pin, solder eyelet termination style. It has a long 8 weeks standard lead time. Additionally, the product's output is 5 a. The product also features robust thermoplastic housing material. The body has a classic red, silver colour. The splendid features of the product include mounting hardware, thread lock. The product is available in panel mount, through hole, right angle configuration. The product has 0.374" (9.50mm) mating length or depth. While the contact is silver. The product is made from sturdy copper alloy materials. The product is designated with the ear99 code number.
