Actual Diameter:
0.098" (2.50mm ID), 0.217" (5.50mm OD)
HTSUS:
8536.69.4030
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Thread Size:
5/16"-32
Operating Temperature:
-
Industry Recognized Mating Diameter:
2.50mm ID (0.098"), 5.50mm OD (0.217")
Internal Switch(s):
Single Switch
Shielding:
Unshielded
Voltage - Rated:
24VDC
Insulation Color:
-
REACH Status:
REACH Unaffected
Includes:
3 pcs - 1 Connector, 1 Nut, 1 Washer
edacadModel:
712RAH Models
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Material Flammability Rating:
-
edacadModelUrl:
/en/models/7219697
Package:
Bulk
Gender:
Male
Connector Type:
Jack
Moisture Sensitivity Level (MSL):
Not Applicable
Body Material:
Copper Alloy
Termination:
Solder Eyelet(s)
standardLeadTime:
8 Weeks
Housing Material:
Thermoplastic
Body Color:
Silver, White
Ingress Protection:
-
Features:
Mounting Hardware, Thread Lock
Mounting Type:
Through Hole, Right Angle
Mating Length/Depth:
-
Series:
-
Contact Material - Plating:
Nickel
Contact Material:
Copper Alloy
Base Product Number:
712RA
ECCN:
EAR99

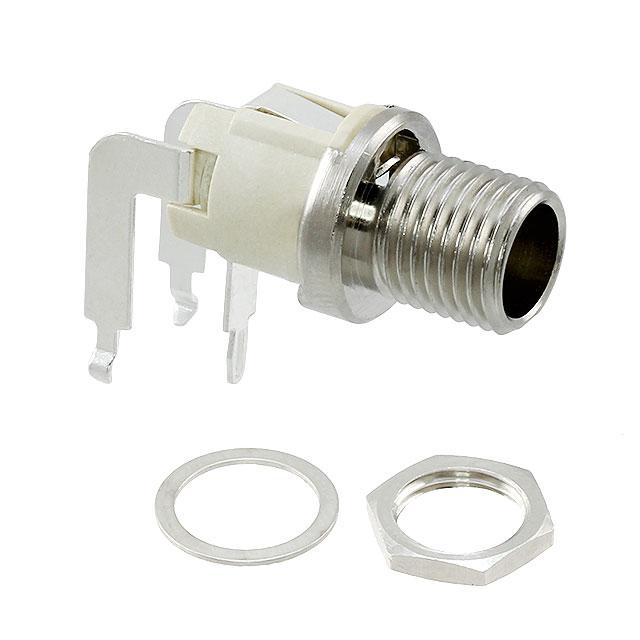

This is manufactured by Switchcraft Inc.. The manufacturer part number is 712RAH. Its actual diameter is 0.098" (2.50mm id), 0.217" (5.50mm od). It is assigned with possible HTSUS value of 8536.69.4030. The product is rohs3 compliant. The product's mounting feature includes bulkhead - front side nut. It has a typical thread size of 5/16"-32. The product has 2.50mm id (0.098"), 5.50mm od (0.217") industrial recognised mating diameter. Internal switch options: single switch. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 24vdc. In addition, it is reach unaffected. The product is also supplied with 3 pcs - 1 connector, 1 nut, 1 washer. The product consists of 2 conductors, 3 contacts positions or contacts. It is shipped in bulk package . In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. The product's body is nicely designed from copper alloy materials. The product features solder eyelet(s) termination style. It has a long 8 weeks standard lead time. The product also features robust thermoplastic housing material. The body has a classic silver, white colour. The splendid features of the product include mounting hardware, thread lock. The product is available in through hole, right angle configuration. While the contact is nickel. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 712ra, a base product number of the product. The product is designated with the ear99 code number.
