Manufacturer Standard Lead Time:
11 Weeks
Detailed Description:

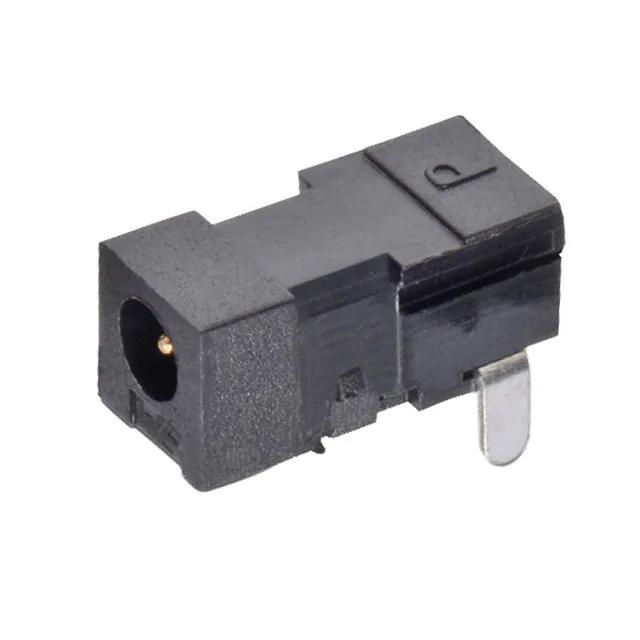

Power Barrel Connector Jack 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 Through Hole, Right Angle
Actual Diameter:
0.026" (0.65mm ID), 0.110" (2.80mm OD)
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Housing Material:
Polyamide (PA66), Nylon 6/6
Operating Temperature:
-20°C ~ 85°C
Contact Material - Plating:
Tin
Shielding:
Unshielded
Voltage - Rated:
12VDC
Internal Switch(s):
Single Switch, Normally Closed
Industry Recognized Mating Diameter:
0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Manufacturer:
Wurth Electronics Inc.
Gender:
Male
Connector Type:
Jack
Termination:
Solder
Current Rating (Amps):
2A
Body Color:
Black
Features:
Board Guide
Mounting Type:
Through Hole, Right Angle
Mating Length/Depth:
0.354" (9.00mm)
Series:
WR-DC
Packaging:
Bulk
Contact Material:
Copper Alloy
This is manufactured by Wurth Electronics Inc.. The manufacturer part number is 694101308002. It has typical 11 weeks of manufacturer standard lead time. It features power barrel connector jack 0.70mm id (0.028"), 2.35mm od (0.093") eiaj-1 through hole, right angle. Its actual diameter is 0.026" (0.65mm id), 0.110" (2.80mm od). The product consists of 2 conductors, 3 contacts positions or contacts. The product also features robust polyamide (pa66), nylon 6/6 housing material. The product has -20°c ~ 85°c operating temperature range. While the contact is tin. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 12vdc. Internal switch options: single switch, normally closed. The product has 0.70mm id (0.028"), 2.35mm od (0.093") eiaj-1 industrial recognised mating diameter. The wurth electronics inc.'s product offers user-desired applications. In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. The product features solder termination style. Additionally, the product's output is 2a. The body has a classic black colour. The splendid features of the product include board guide. The product is available in through hole, right angle configuration. The product has 0.354" (9.00mm) mating length or depth. The product wr-dc, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product is made from sturdy copper alloy materials.
