CUI Devices SJ-43515RS-SMT-TR, 3.5mm Sky Jack Connector

Enrgtech Part No: ET18630188
|
Manufacturer Part No:
SJ-43515RS-SMT-TR
|
Manufacturer: CUI Devices

SJ-43515RS-SMT-TR CUI Devices , 3.5mm Sky Jack Connector

Product Information

Mounting Type:

Surface Mount

Gender:

Female

Body Orientation:

Horizontal

Type:

Jack Connector

Size:

3.5 mm

Actual Diameter:

0.142" (3.60mm)

HTSUS:

8536.69.4040

RoHS Status:

ROHS3 Compliant

Thread Size:

Operating Temperature:

-20°C ~ 85°C

Panel Hole Size:

Industry Recognized Mating Diameter:

3.50mm (0.141", 1/8", Mini Plug) - Headphone

Checking for live stock

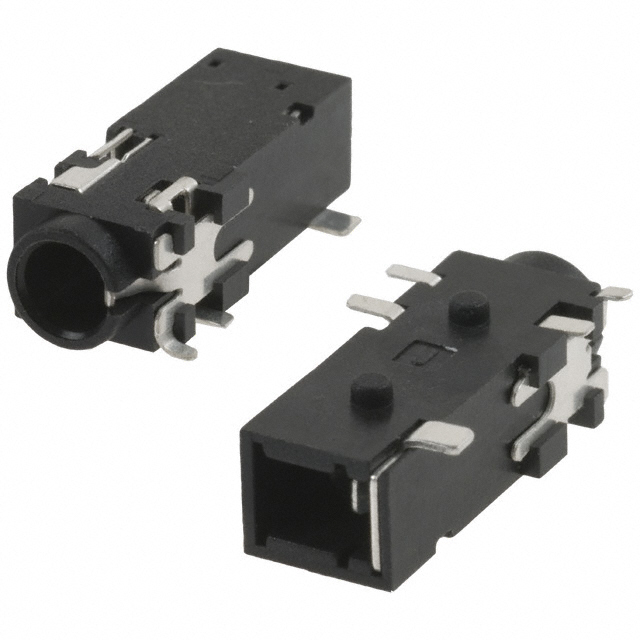

The CUI Devices SJ-43515RS-SMT-TR is a 3.5 mm surface-mount jack connector used for audio signal connections on printed circuit boards. It is generally used in compact electronic devices where space is limited and through-hole connectors are impractical. This connector is designed to be soldered directly onto the PCB using standard SMT assembly processes. It provides a stable and repeatable connection for headphones, audio cables, or signal input/output in low-voltage applications.

Standout Features of the CUI Devices 3.5mm Sky Jack Connector

The SJ-43515RS-SMT-TR features a right-angle layout that allows the plug to enter the board surface at a right angle. This helps reduce stress on the PCB and keeps the overall device profile low.

3.5 mm jack socket.
Surface-mount technology (SMT).
Right-angle orientation.
Compact footprint for dense PCB layouts.

Electrical Function and Usage

This connector is built for signal-level audio applications rather than power delivery. It supports standard 3.5 mm plugs used for mono or stereo audio, depending on circuit design.

Audio input or output ports
Headphone or earphone connections
Signal routing in embedded systems
Low-current analogue audio circuits

Datasheet - SJ-43515RS-SMT-TR(Technical Reference)

Product Improvements 17/Nov/2022(PCN Design/Specification)

SJ-4351x-SMT(Datasheets)
