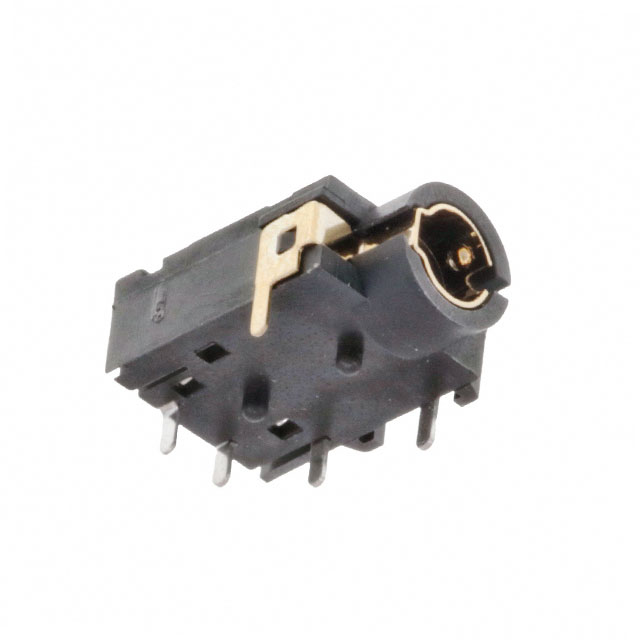

CUI Devices SJ-43514

SJ-43514 CUI Devices
SJ-43514
SJ-43514
CUI Devices

Product Information

Mounting Type:
Through Hole
Gender:
Female
Body Orientation:
Right Angled
Type:
Jack Connector
Size:
3.5 mm
Actual Diameter:
0.142" (3.60mm)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Thread Size:
-
Operating Temperature:
-20°C ~ 85°C
Panel Hole Size:
-
Industry Recognized Mating Diameter:
3.50mm (0.141", 1/8", Mini Plug) - Headphone
Internal Switch(s):
Does Not Contain Switch
Shielding:
Unshielded
Voltage - Rated:
12VDC
Cable Opening:
-
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
SJ-43514 Models
Signal Lines:
Stereo (4 Conductor, TRRS)
Number of Positions/Contacts:
4 Conductors, 4 Contacts
edacadModelUrl:
/en/models/368146
Insulation Color:
-
Gender:
Female
Connector Type:
Phone Jack
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
-
Termination:
Solder
standardLeadTime:
11 Weeks
Current Rating (Amps):
1 A
Housing Material:
Polyamide (PA66), Nylon 6/6
Body Color:
Black
Features:
-
Mounting Type:
Through Hole, Right Angle
Mating Length/Depth:
0.551" (14.00mm)
Series:
SJ
Packaging:
Tray
Contact Material - Plating:
Gold, Tin
Contact Material:
Copper Alloy, Phosphor Bronze
Base Product Number:
SJ-43
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is SJ-43514. The product is available in through hole configuration. In addition, female is the available "Gender" of the product. It has right angled body orientation. It comes in jack connector configuration. The product is available in 3.5 mm size. Its actual diameter is 0.142" (3.60mm). It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -20°c ~ 85°c operating temperature range. The product has 3.50mm (0.141", 1/8", mini plug) - headphone industrial recognised mating diameter. Internal switch options: does not contain switch. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 12vdc. In addition, it is reach unaffected. Features stereo (4 conductor, trrs) signal lines. The product consists of 4 conductors, 4 contacts positions or contacts. phone jack Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 11 weeks standard lead time. Additionally, the product's output is 1 a. The product also features robust polyamide (pa66), nylon 6/6 housing material. The body has a classic black colour. The product is available in through hole, right angle configuration. The product has 0.551" (14.00mm) mating length or depth. The product sj, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. While the contact is gold, tin. The product is made from sturdy copper alloy, phosphor bronze materials. Moreover, it corresponds to sj-43, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet - SJ-43514(Technical Reference)
pdf icon
SJ-4351x(TS)(Datasheets)
