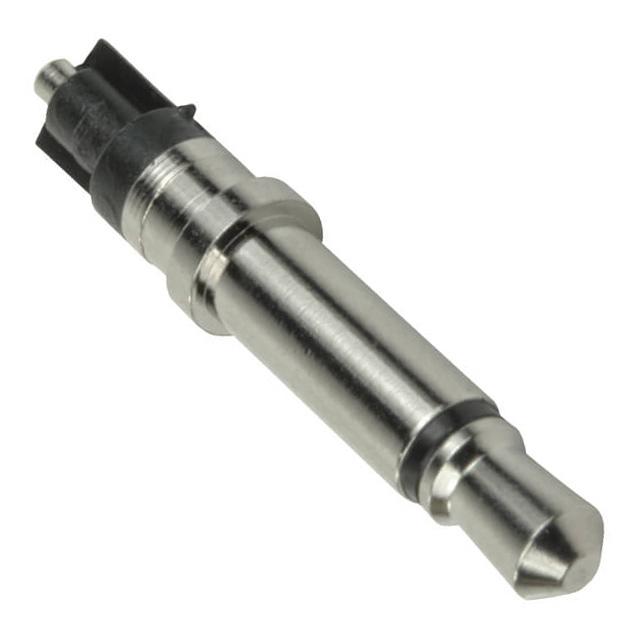

CUI Inc. MP-3521

MP-3521 CUI Inc.
CUI Inc.

Product Information

Manufacturer Standard Lead Time:
7 Weeks
Detailed Description:
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Mono Connector Solder
Actual Diameter:
0.126" (3.20mm)
Number of Positions/Contacts:
2 Conductors, 2 Contacts
Operating Temperature:
-25°C ~ 70°C
Contact Material - Plating:
Nickel
Shielding:
Unshielded
Voltage - Rated:
12VDC
Internal Switch(s):
Does Not Contain Switch
Signal Lines:
Mono
Industry Recognized Mating Diameter:
3.50mm (0.141", 1/8", Mini Plug) - Headphone
Manufacturer:
CUI Inc.
Insulation Color:
Black
Gender:
Male
Connector Type:
Phone Plug
Body Material:
Brass
Termination:
Solder
Current Rating (Amps):
1A
Body Color:
Silver
Mounting Type:
Free Hanging (In-Line)
Mating Length/Depth:
0.551" (14.00mm)
Packaging:
Bulk
Contact Material:
Brass
Checking for live stock

This is manufactured by CUI Inc.. The manufacturer part number is MP-3521. It has typical 7 weeks of manufacturer standard lead time. It features 3.50mm (0.141", 1/8", mini plug) - headphone phone plug mono connector solder. Its actual diameter is 0.126" (3.20mm). The product consists of 2 conductors, 2 contacts positions or contacts. The product has -25°c ~ 70°c operating temperature range. While the contact is nickel. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 12vdc. Internal switch options: does not contain switch. Features mono signal lines. The product has 3.50mm (0.141", 1/8", mini plug) - headphone industrial recognised mating diameter. The cui inc.'s product offers user-desired applications. In addition, black is the insulation color of the product. In addition, male is the available "Gender" of the product. phone plug Connector type offer robust functionality. The product's body is nicely designed from brass materials. The product features solder termination style. Additionally, the product's output is 1a. The body has a classic silver colour. The product is available in free hanging (in-line) configuration. The product has 0.551" (14.00mm) mating length or depth. In addition, bulk is the available packaging type of the product. The product is made from sturdy brass materials.

pdf icon
MP-3521 Datasheet(Datasheets)
pdf icon
Understanding Audio Jack Switches and Schematics(Mfg Application Notes)
