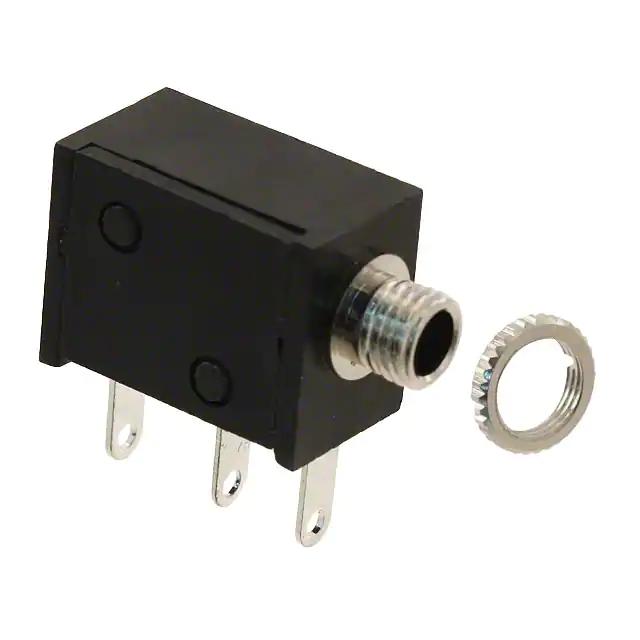

CUI Inc. MJ1-2502

Enrgtech Part No: ET11490317
|
Manufacturer Part No:
MJ1-2502
|
Manufacturer: CUI Inc.

Product Information

Manufacturer Standard Lead Time:

6 Weeks

Detailed Description:

2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Mono Connector Solder Eyelet(s)

Actual Diameter:

0.102" (2.60mm)

Voltage - Rated:

12VDC

Thread Size:

Panel Hole Size:

0.197" (5.00mm)

Internal Switch(s):

Single Switch

Shielding:

Unshielded

Number of Positions/Contacts:

2 Conductors, 3 Contacts

Includes:

2 pcs - 1 Connector, 1 Nut

Signal Lines:

Mono

Industry Recognized Mating Diameter:

2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone

Checking for live stock

This is manufactured by CUI Inc.. The manufacturer part number is MJ1-2502. It has typical 6 weeks of manufacturer standard lead time. It features 2.50mm (0.094", 3/32", sub mini, miniature) - headphone phone jack mono connector solder eyelet(s). Its actual diameter is 0.102" (2.60mm). It also exhibits voltage rating of 12vdc. It has a typical thread size of m4. The product features a panel hole size of 0.197" (5.00mm). Internal switch options: single switch. Furthermore, the product is shielded with unshielded. The product consists of 2 conductors, 3 contacts positions or contacts. The product is also supplied with 2 pcs - 1 connector, 1 nut. Features mono signal lines. The product has 2.50mm (0.094", 3/32", sub mini, miniature) - headphone industrial recognised mating diameter. The cui inc.'s product offers user-desired applications. While the contact is tin. In addition, female is the available "Gender" of the product. phone jack Connector type offer robust functionality. The product's body is nicely designed from brass materials. The product features solder eyelet(s) termination style. Additionally, the product's output is 1a. The product also features robust polybutylene terephthalate (pbt) housing material. The body has a classic silver, black colour. The splendid features of the product include mounting hardware, thread lock. The product is available in panel mount, through hole, right angle configuration. In addition, tray is the available packaging type of the product. The product is made from sturdy brass; copper alloy materials.

Multiple Devices Plating 19/Sep/2014(PCN Design/Specification)

MJ1-2502(Datasheets)

480 (UK2011-EN PDF)(Catalog Page)

Understanding Audio Jack Switches and Schematics(Mfg Application Notes)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search MJ1-2502 on website for other similar products.

We accept all major payment methods for all products including ET11490317. Please check your shopping cart at the time of order.

You can order CUI Inc. brand products with MJ1-2502 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Barrel - Audio Connectors category are shipped in lowest possible time.

You will get a confirmation email regarding your order of CUI Inc. MJ1-2502. You can also check on our website or by contacting our customer support team for further order details on CUI Inc. MJ1-2502.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET11490317 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "CUI Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET11490317.

Yes. We ship MJ1-2502 Internationally to many countries around the world.
