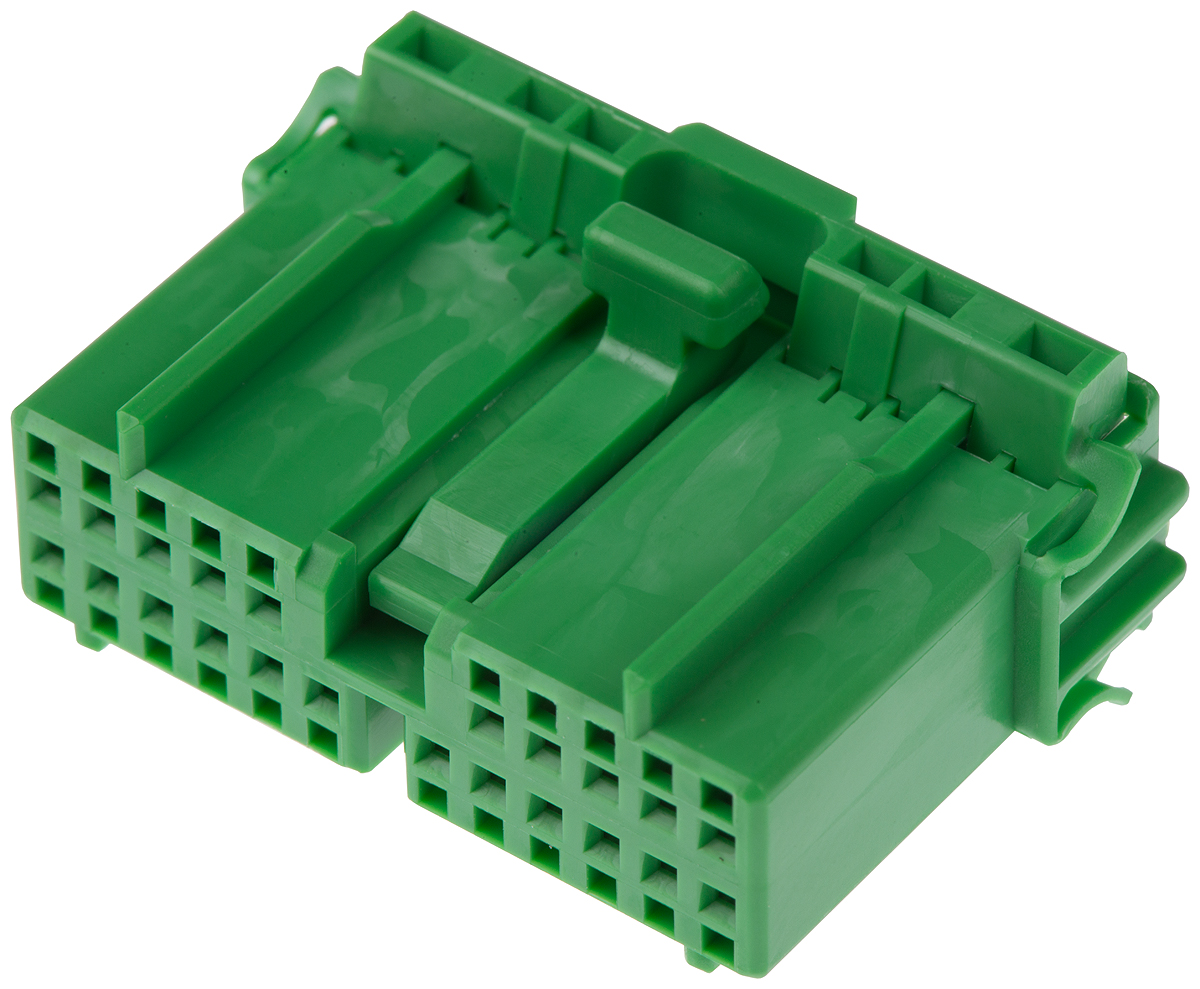

JAE 22 Way Cable Mount Socket Housing

IL-AG5-22S-D3C1 JAE 22 Way Cable Mount Socket Housing
IL-AG5-22S-D3C1
IL-AG5-22S-D3C1
JAE

Product Information

Current Rating:
3A
Mounting Type:
Cable Mount
Gender:
Female
Colour:
Yellow
Height:
16.6mm
Housing Material:
PBT
Width:
36.7mm
Depth:
24.6mm
Number of Rows:
2
Minimum Operating Temperature:
-40°C
Series:
IL-AG5
Number of Contacts:
22
Type:
Socket Housing
Maximum Operating Temperature:
+85°C
Checking for live stock

This is 22 Way Cable Mount Socket Housing manufactured by JAE. The manufacturer part number is IL-AG5-22S-D3C1. The product has a current rating of 3a. The product is available in cable mount configuration. In addition, female is the available "Gender" of the product. It has a decent yellow colour. In addition, the height is 16.6mm. The product also features robust pbt housing material. Furthermore, the product is 36.7mm wide. The product comes in 24.6mm depth. It comes in 2 of rows. Whereas, the minimum operating temperature of the product is -40°c. The product il-ag5, is a highly preferred choice for users. The product contains 22 contacts. It comes in socket housing configuration. It has a maximum operating temperature of +85°c.

pdf icon
Datasheet(Technical Reference)
