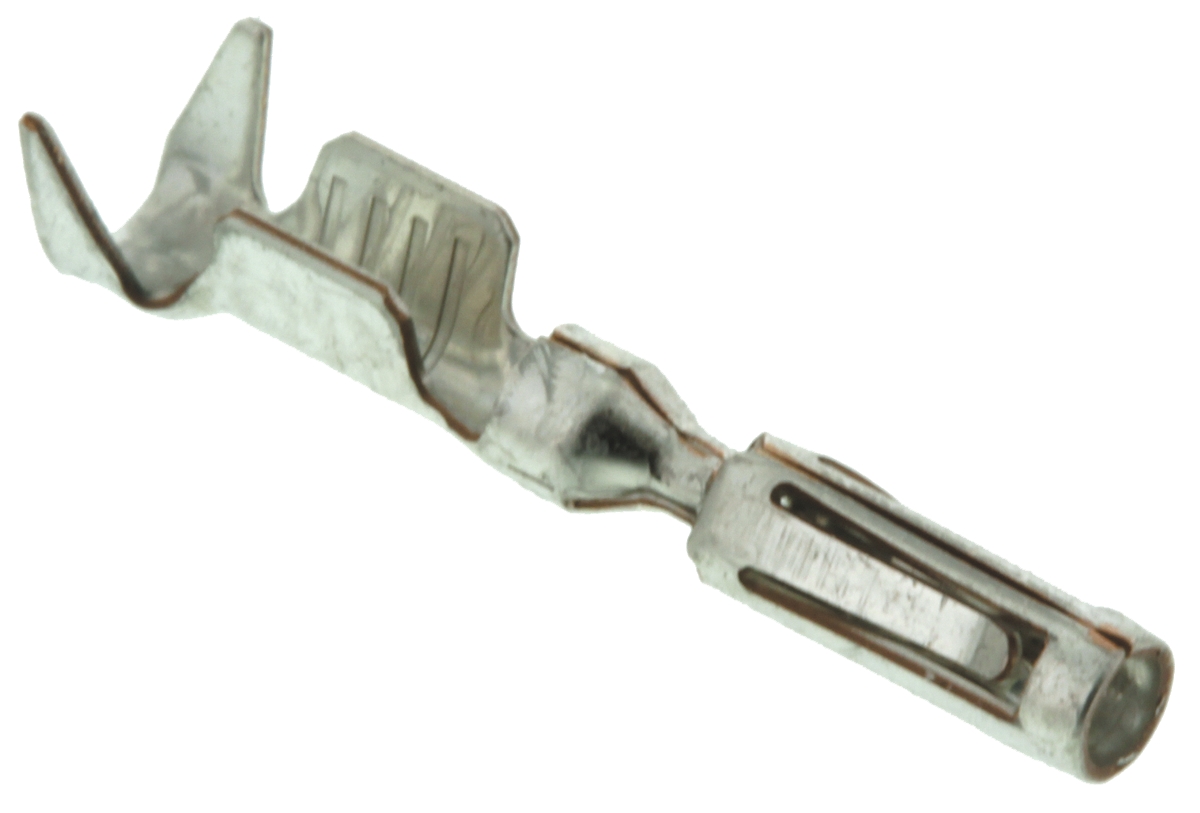

TE Connectivity AMPSEAL Crimp Terminal, Female, 1mm² to 1.5mm², 20AWG to 16AWG, Tin Plating

770854-1 TE Connectivity AMPSEAL Crimp Terminal, Female, 1mm² to 1.5mm², 20AWG to 16AWG, Tin Plating
770854-1
770854-1 TE Connectivity AMPSEAL Crimp Terminal, Female, 1mm² to 1.5mm², 20AWG to 16AWG, Tin Plating
TE Connectivity

Product Information

Diameter:
1.3 mm
Contact Plating:
Tin
Gender:
Female
Sub Type:
Socket
Current:
24A
Length:
19.1mm
Standards/Approvals:
RoHS, ELV, REACH
Series:
Ampseal
Termination Type:
Crimp
Product Type:
Crimp Terminal
Maximum Operating Temperature:
105°C
Minimum Operating Temperature:
-40°C
Contact Material:
Copper Nickel Zinc Alloy
RoHs Compliant
Checking for live stock

The TE Connectivity 770854-1 is a high-performance AMPSEAL series socket terminal designed for rugged automotive environments. This female crimp contact ensures a stable electrical connection for wires ranging from 16 to 20 AWG. Its durable copper alloy construction and tin-plated finish offer excellent conductivity and corrosion resistance. Engineers trust this component for heavy-duty vehicle applications, including trucks, buses, and off-road machinery, where reliable signal transmission is essential.

Main Reasons to Use This Product

This TE Connectivity 770854-1 crimp terminal provides superior vibration resistance and high current capacity for demanding vehicle electronics. It ensures long-term durability in harsh conditions.

  • Simplifies wiring with a secure F-crimp termination.
  • Withstands extreme temperatures from -40°C to 125°C.

Special Features & Technical Specifications

  • Series: AMPSEAL
  • Terminal Type: Receptacle / Socket
  • Current Rating: Up to 17A (Typical)
  • Wire Size: 16-20 AWG (0.5 – 1.5 mm²)
  • Contact Material: Copper Alloy
  • Interface Plating: Tin (Sn)
  • Primary Locking: On the Terminal
  • Compliance: RoHS and REACH compliant.

pdf icon
Dimensional Drawing(Technical Reference)
