Cinch Terminal for use with Automotive Connectors

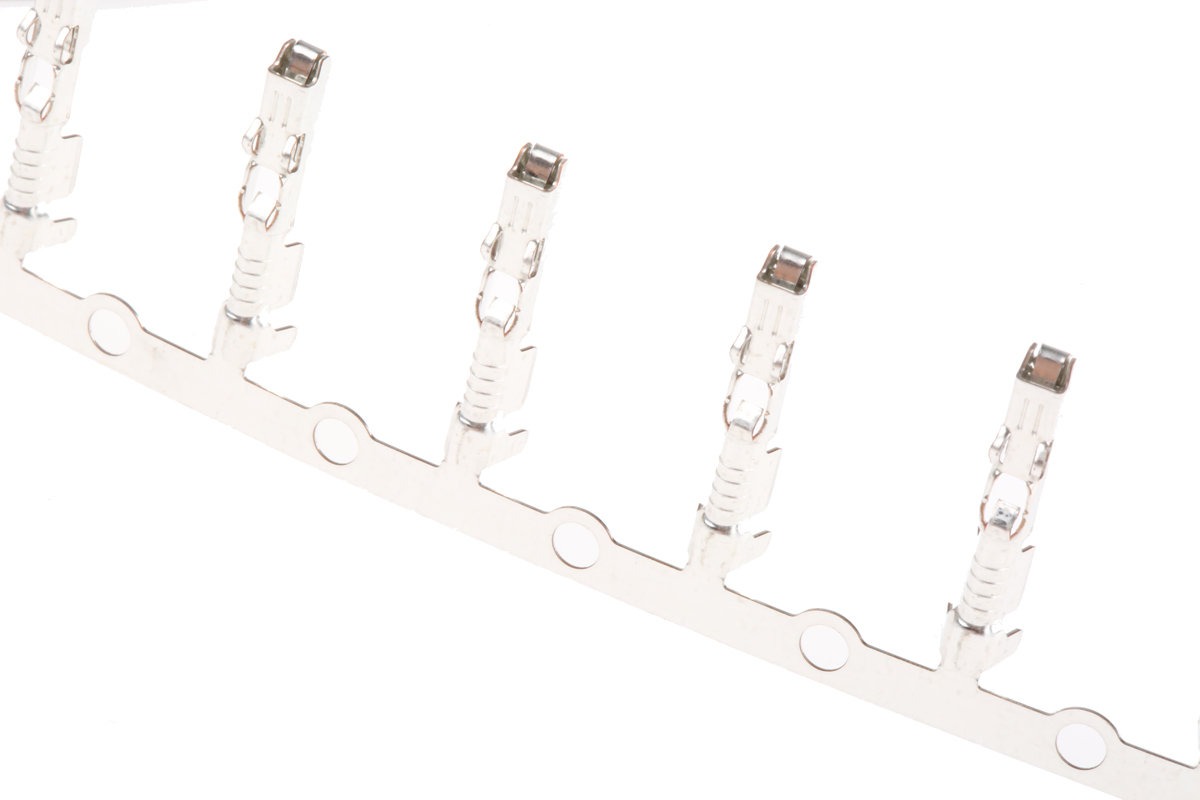

Boost the reliability of your automotive connector assemblies with the Cinch 4250000872 SHS female crimp terminal, the ideal choice for robust, sealed wiring systems in harsh environments. Unlike generic terminals, the Cinch 4250000872 is engineered for sealed header systems (ModICE), offering enhanced durability in extreme conditions. Its proven SHS compatibility and anti‑tang collapse design set it apart from standard crimp terminals.

Crucial Features of the Female Crimp Terminal

• Connector Type & Material: Female socket terminal made from copper alloy with tin plating (~1 µm thick, 39.4 µin), ensuring excellent conductivity and corrosion resistance.
• Termination & Crimp: Designed for crimp termination compatible with 18–20 AWG GXL/TXL wires.
• Series/System Compatibility: SHS series, part of Cinch’s 1.5 mm Sealed Header System (ModICE); engineered to reduce tang‑failure risk and enhance sealing performance.
• Packaging Options: Available in Tape & Reel (TR) and Cut Tape (CT) formats, suitable for volume production or prototyping.
• Compliance & Origin: RoHS‑compliant and manufactured in the USA.

What Benefits Does It Offer to Users?

• Ensures secure, reliable six‑digit performance in sealed automotive connectors where environmental exposure is a concern.
• Tin plating enhances long-term corrosion resistance, a vital property for automotive and industrial applications.
• Precision crimp design supports consistent mechanical and electrical contact.
• Packaging flexibility supports large-scale manufacturing or limited-run installations.

Product Use Cases

Perfect for automotive ECUs, engine harnesses, sealed control modules, rugged industrial connectors, and any application requiring sealed, high-integrity crimp connections.

For more information please check the datasheets.
