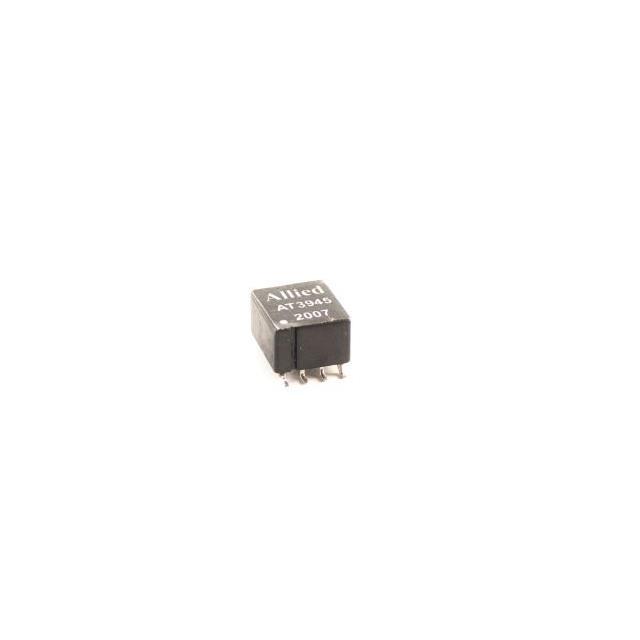

Allied Components International AT3945
Product Information
Frequency Range:
100kHz ~ 55MHz
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Termination Style:
Gull Wing
Power Level:
-
Approval Agency:
-
DC Resistance (DCR) - Primary:
-
Insertion Loss:
-
Height - Seated (Max):
0.299" (7.60mm)
REACH Status:
REACH info available upon request
Operating Temperature:
0°C ~ 70°C
DC Resistance (DCR) - Secondary:
-
Impedance - Secondary (Ohms):
-
Package:
Tape & Reel (TR)
Size / Dimension:
0.461" L x 0.394" W (11.70mm x 10.00mm)
Transformer Type:
Data/Voice
Turns Ratio - Primary:Secondary:
1:1
Voltage - Isolation:
2000V
Impedance - Primary (Ohms):
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Weight:
-
Series:
-
Frequency Response:
-
Return Loss:
20dB Min @ 100kHz ~ 10MHz
Checking for live stock
FAQs
Yes. You can also search AT3945 on website for other similar products.
We accept all major payment methods for all products including ET23807626. Please check your shopping cart at the time of order.
You can order Allied Components International brand products with AT3945 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Audio Transformers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Allied Components International AT3945. You can also check on our website or by contacting our customer support team for further order details on Allied Components International AT3945.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23807626 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Allied Components International" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23807626.
Yes. We ship AT3945 Internationally to many countries around the world.
This is manufactured by Allied Components International. The manufacturer part number is AT3945. The frequency range includes 100khz ~ 55mhz. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. Moreover, it has gull wing terminal style. It has the maximum seated height of 0.299" (7.60mm). In addition, it is reach info available upon request. The product has 0°c ~ 70°c operating temperature range. It is shipped in tape & reel (tr) package . The product's diameters include 0.461" l x 0.394" w (11.70mm x 10.00mm). It is a data/voice transformer. The typical primary and secondary turn ratio is 1:1. 2000v of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. It has a return loss of 20db min @ 100khz ~ 10mhz.
