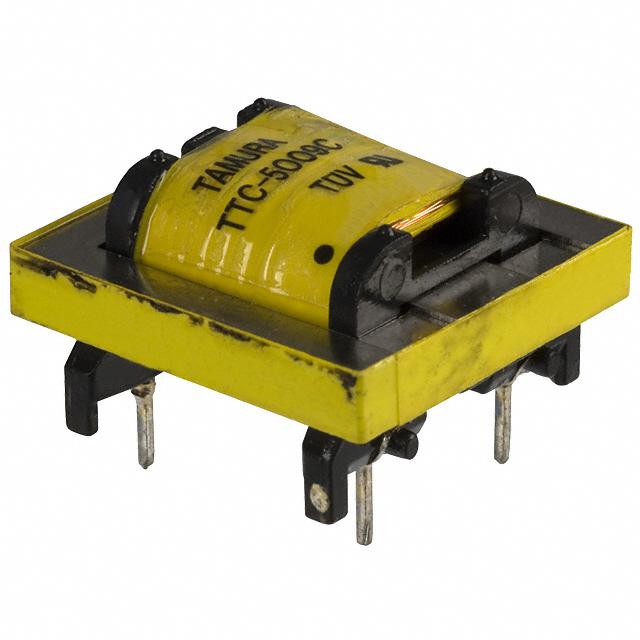

Tamura TTC-5009
Product Information
Frequency Range:
200Hz ~ 4kHz
HTSUS:
8504.31.2000
Termination Style:
PC Pin
Power Level:
-
Approval Agency:
UL1950, UL60950, EN60950
DC Resistance (DCR) - Primary:
46Ohm
Insertion Loss:
1dB Max @ 1kHz
Height - Seated (Max):
0.543" (13.80mm)
Operating Temperature:
-
DC Resistance (DCR) - Secondary:
45Ohm
Impedance - Secondary (Ohms):
530
Package:
Bulk
Size / Dimension:
0.886" L x 0.909" W (22.50mm x 23.10mm)
Transformer Type:
-
Turns Ratio - Primary:Secondary:
1:1
Voltage - Isolation:
1875VRMS @ 1 Second
Impedance - Primary (Ohms):
600
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Weight:
-
Series:
TTC
Frequency Response:
±0.25dB
Return Loss:
20dB Min @ 1kHz
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search TTC-5009 on website for other similar products.
We accept all major payment methods for all products including ET15114800. Please check your shopping cart at the time of order.
You can order Tamura brand products with TTC-5009 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Audio Transformers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Tamura TTC-5009. You can also check on our website or by contacting our customer support team for further order details on Tamura TTC-5009.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET15114800 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Tamura" products on our website by using Enrgtech's Unique Manufacturing Part Number ET15114800.
Yes. We ship TTC-5009 Internationally to many countries around the world.
This is manufactured by Tamura. The manufacturer part number is TTC-5009. The frequency range includes 200hz ~ 4khz. It is assigned with possible HTSUS value of 8504.31.2000. Moreover, it has pc pin terminal style. It is approved by ul1950, ul60950, en60950. A product has a primary 46ohm DC resistance. Allows 1db max @ 1khz of insertion loss. It has the maximum seated height of 0.543" (13.80mm). While it provides 45ohm of secondary DC resistance. The secondary impedance in ohms is 530. It is shipped in bulk package . The product's diameters include 0.886" l x 0.909" w (22.50mm x 23.10mm). The typical primary and secondary turn ratio is 1:1. 1875vrms @ 1 second of isolation voltage. The product has a primary 600 impedance. Its typical moisture sensitivity level is not applicable. The product is available in through hole configuration. The product ttc, is a highly preferred choice for users. The product offers ±0.25db of frequency response. It has a return loss of 20db min @ 1khz. The product is designated with the ear99 code number.
