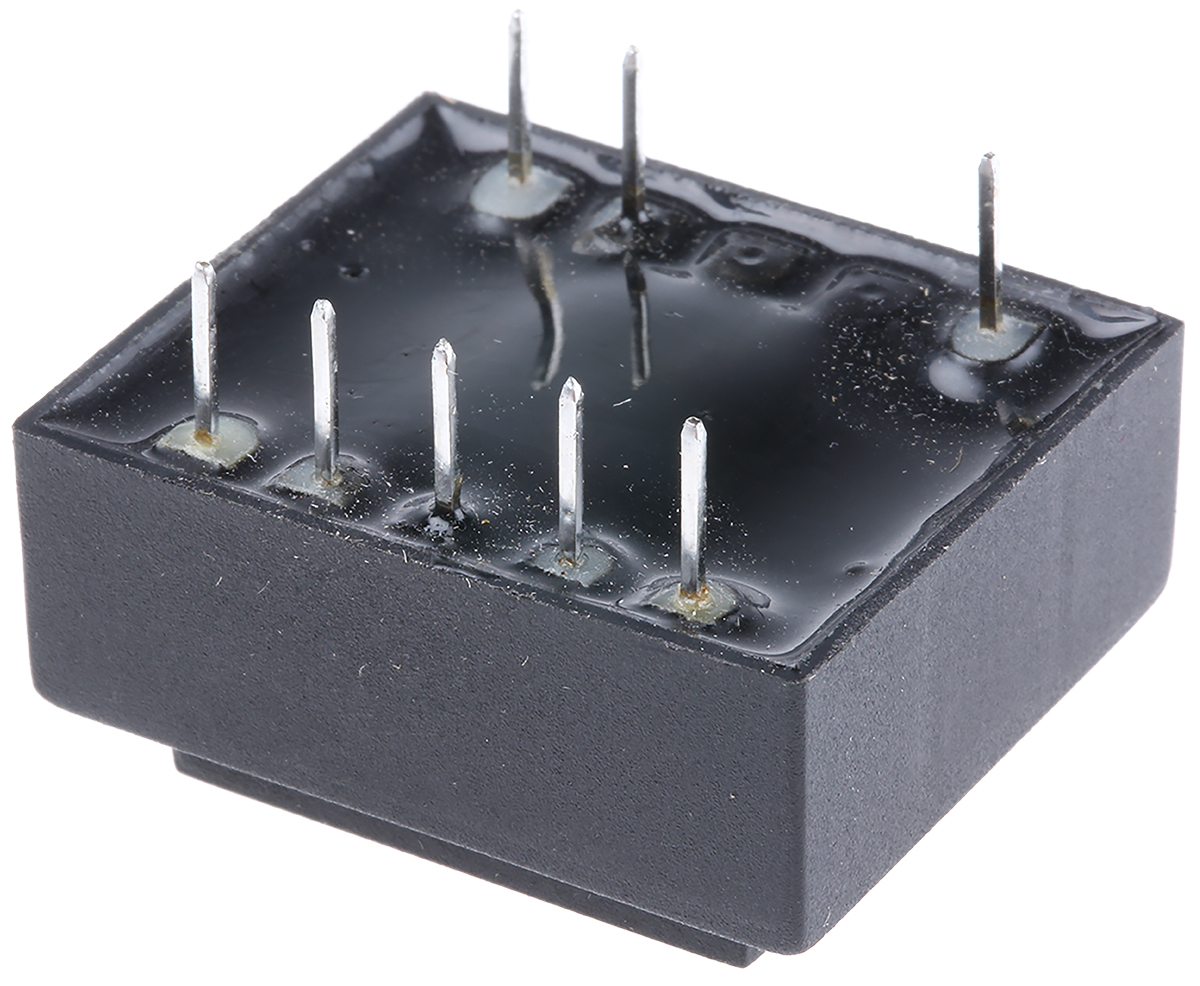

Through Hole Audio Transformer 10kΩ

  • Enrgtech Part No: ET14021192
  • |
  • Manufacturer Part No:

    Z3003E

  • |
  • Manufacturer: OEP
Z3003E Through Hole Audio Transformer 10kΩ
Z3003E
OEP

Product Information

Primary DC Resistance:
2.1kΩ
Maximum Temperature:
+70°C
Dimensions:
32 x 15 x 27mm
Mounting Type:
Through Hole
Minimum Temperature:
-20°C
Primary Impedance:
2.5 kΩ, 10 kΩ
Length:
32mm
Maximum Operating Frequency:
20kHz
Width:
15mm
Depth:
27mm
Minimum Operating Frequency:
20Hz
Turns Ratio:
1:1:2
Secondary Impedance:
10kΩ
Secondary DC Resistance:
2.2kΩ
RoHs Compliant
Checking for live stock

This is Through Hole Audio Transformer 10kΩ manufactured by OEP. The manufacturer part number is Z3003E. Additionally, it has 2.1kω primary DC resistance . The product has +70°c maximum temperature. The given dimensions of the product include 32 x 15 x 27mm. The product is available in through hole configuration. While its minimum temperature is -20°c. It has about 2.5 kω, 10 kω primary impedance . Its accurate length is 32mm. It carries 20khz of maximum operating frequency. Furthermore, the product is 15mm wide. The product comes in 27mm depth. It has a minimum 20hz operating frequency . It has 1:1:2 turns ratio . Its secondary impedance is about 10kω . It has about 2.2kω secondary DC resistance .
