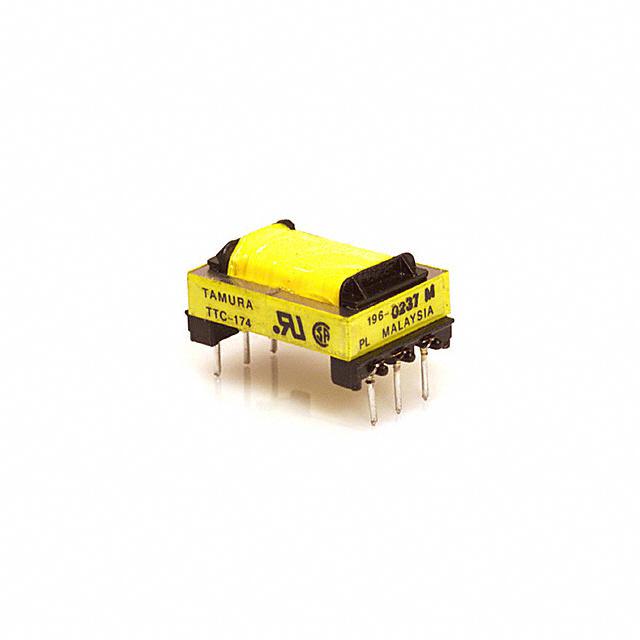

Tamura TTC-174
Product Information
Frequency Range:
300Hz ~ 3.5kHz
HTSUS:
8504.40.8500
RoHS Status:
RoHS Compliant
Termination Style:
PC Pin
Power Level:
-45dB ~ 10dB
Approval Agency:
CSA-C22.2 No. 66-M1988, UL1863
DC Resistance (DCR) - Primary:
75Ohm
Height - Seated (Max):
0.500" (12.70mm)
Operating Temperature:
-
Manufacturer:
Tamura
DC Resistance (DCR) - Secondary:
170Ohm
Impedance - Secondary (Ohms):
1.2k, 600/600
Size / Dimension:
0.799" L x 1.201" W (20.30mm x 30.50mm)
Turns Ratio - Primary:Secondary:
1:1
standardLeadTime:
26 Weeks
Voltage - Isolation:
1500VRMS @ 1 Minute
Impedance - Primary (Ohms):
600
Moisture Sensitivity Level (MSL):
Not Applicable
Transformer Type:
Data/Voice Coupling
Insertion Loss:
1.6dB Max @ 1kHz
Mounting Type:
Through Hole
Series:
TTC
Frequency Response:
-1.6dB ~ 0.3dB
Packaging:
Bulk
Return Loss:
14dB Min @ 1kHz
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search TTC-174 on website for other similar products.
We accept all major payment methods for all products including ET13121486. Please check your shopping cart at the time of order.
You can order Tamura brand products with TTC-174 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Audio Transformers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Tamura TTC-174. You can also check on our website or by contacting our customer support team for further order details on Tamura TTC-174.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13121486 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Tamura" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13121486.
Yes. We ship TTC-174 Internationally to many countries around the world.
This is manufactured by Tamura. The manufacturer part number is TTC-174. The frequency range includes 300hz ~ 3.5khz. It is assigned with possible HTSUS value of 8504.40.8500. The product is rohs compliant. Moreover, it has pc pin terminal style. It has -45db ~ 10db of power level. It is approved by csa-c22.2 no. 66-m1988, ul1863. A product has a primary 75ohm DC resistance. It has the maximum seated height of 0.500" (12.70mm). The tamura's product offers user-desired applications. While it provides 170ohm of secondary DC resistance. The secondary impedance in ohms is 1.2k, 600/600. The product's diameters include 0.799" l x 1.201" w (20.30mm x 30.50mm). The typical primary and secondary turn ratio is 1:1. It has a long 26 weeks standard lead time. 1500vrms @ 1 minute of isolation voltage. The product has a primary 600 impedance. Its typical moisture sensitivity level is not applicable. It is a data/voice coupling transformer. Allows 1.6db max @ 1khz of insertion loss. The product is available in through hole configuration. The product ttc, is a highly preferred choice for users. The product offers -1.6db ~ 0.3db of frequency response. In addition, bulk is the available packaging type of the product. It has a return loss of 14db min @ 1khz. The product is designated with the ear99 code number.
