Frequency Range:
50Hz ~ 12kHz
HTSUS:
8504.31.4035
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder Lug
Power Level:
50W
Approval Agency:
-
DC Resistance (DCR) - Primary:
41.3Ohm, 40.5Ohm, 81.8Ohm
Insertion Loss:
-
Height - Seated (Max):
3.188" (80.98mm)
REACH Status:
REACH Unaffected
Operating Temperature:
-
DC Resistance (DCR) - Secondary:
120mOhm, 150mOhm, 210mOhm
Impedance - Secondary (Ohms):
2, 4, 8, 16
Package:
Box
Size / Dimension:
3.750" L x 3.090" W (95.25mm x 78.49mm)
Transformer Type:
Push-Pull Audiophile, Ultra-Linear - Tube Output
Turns Ratio - Primary:Secondary:
14.24:1
standardLeadTime:
4 Weeks
Voltage - Isolation:
-
Impedance - Primary (Ohms):
3.4kCT
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Chassis Mount
Weight:
0.625 lb (283.5 g)
Series:
1750
Frequency Response:
±1dB
Return Loss:
-
Base Product Number:
1750
ECCN:
EAR99

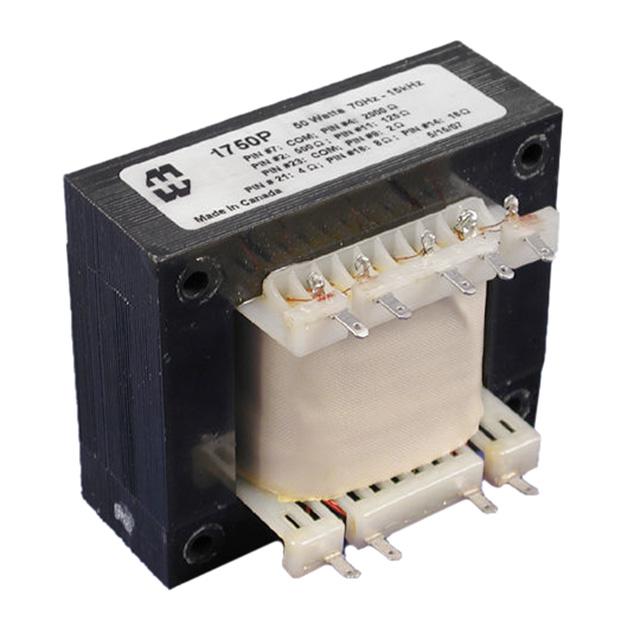

This is manufactured by Hammond Manufacturing. The manufacturer part number is 1750P. The frequency range includes 50hz ~ 12khz. It is assigned with possible HTSUS value of 8504.31.4035. The product is rohs3 compliant. Moreover, it has solder lug terminal style. It has 50w of power level. A product has a primary 41.3ohm, 40.5ohm, 81.8ohm DC resistance. It has the maximum seated height of 3.188" (80.98mm). In addition, it is reach unaffected. While it provides 120mohm, 150mohm, 210mohm of secondary DC resistance. The secondary impedance in ohms is 2, 4, 8, 16. It is shipped in box package . The product's diameters include 3.750" l x 3.090" w (95.25mm x 78.49mm). It is a push-pull audiophile, ultra-linear - tube output transformer. The typical primary and secondary turn ratio is 14.24:1. It has a long 4 weeks standard lead time. The product has a primary 3.4kct impedance. Its typical moisture sensitivity level is not applicable. The product is available in chassis mount configuration. The typical product's weight is 0.625 lb (283.5 g). The product 1750, is a highly preferred choice for users. The product offers ±1db of frequency response. Moreover, it corresponds to 1750, a base product number of the product. The product is designated with the ear99 code number.
