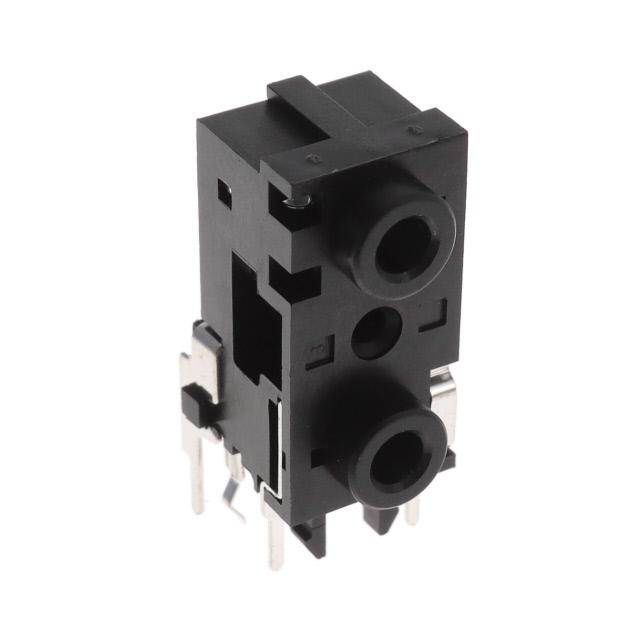

Kycon, Inc. STX-4235-3/5-N

STX-4235-3-5-N Kycon, Inc. STX-4235-3/5-N
STX-4235-3/5-N
Kycon, Inc.

Product Information

Actual Diameter:
0.142" (3.60mm)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Thread Size:
-
Operating Temperature:
-25°C ~ 85°C
Panel Hole Size:
-
Industry Recognized Mating Diameter:
3.50mm (0.141", 1/8", Mini Plug) - Headphone
Internal Switch(s):
Two Switches
Shielding:
Unshielded
Voltage - Rated:
16VDC
Cable Opening:
-
title:
STX-4235-3/5-N
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
STX-4235-3/5-N Models
Signal Lines:
Stereo (3 Conductor, TRS)
Number of Positions/Contacts:
2 Sets of 3 Conductors, 8 Contacts
edacadModelUrl:
/en/models/10246572
Insulation Color:
-
Gender:
Female
Connector Type:
Phone Jack, Dual
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
-
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
300 mA
Housing Material:
Polyamide (PA46), Nylon 4/6, Glass Filled
Body Color:
Black
Features:
Board Lock
Mounting Type:
Through Hole, Right Angle
Mating Length/Depth:
-
Series:
STX-4235
Packaging:
Bulk
Contact Material - Plating:
Tin
Contact Material:
Brass, Phosphor Bronze
Base Product Number:
STX
ECCN:
EAR99
Checking for live stock

This is manufactured by Kycon, Inc.. The manufacturer part number is STX-4235-3/5-N. Its actual diameter is 0.142" (3.60mm). It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 85°c operating temperature range. The product has 3.50mm (0.141", 1/8", mini plug) - headphone industrial recognised mating diameter. Internal switch options: two switches. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 16vdc. In addition, it is reach unaffected. Features stereo (3 conductor, trs) signal lines. The product consists of 2 sets of 3 conductors, 8 contacts positions or contacts. In addition, female is the available "Gender" of the product. phone jack, dual Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the product's output is 300 ma. The product also features robust polyamide (pa46), nylon 4/6, glass filled housing material. The body has a classic black colour. The splendid features of the product include board lock. The product is available in through hole, right angle configuration. The product stx-4235, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. While the contact is tin. The product is made from sturdy brass, phosphor bronze materials. Moreover, it corresponds to stx, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
STX-4235-3-5-N Drawing(Datasheets)
