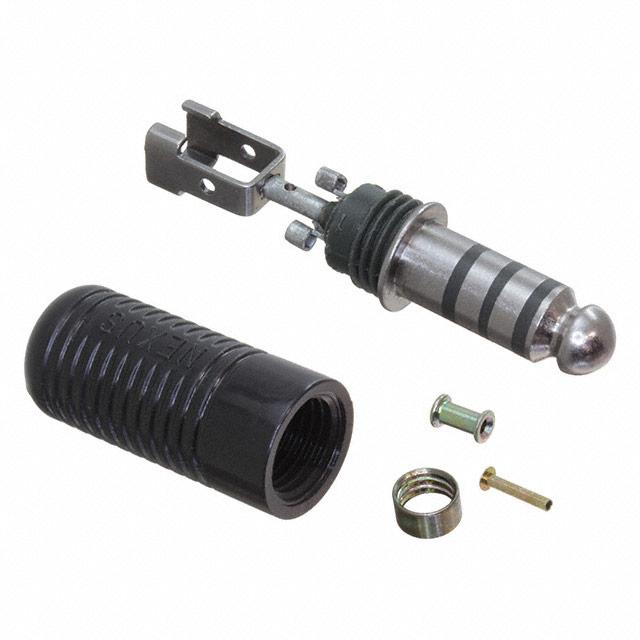

Amphenol NEXUS Technologies TP-101

Enrgtech Part No: ET17369852
|
Manufacturer Part No:
TP-101
|
Manufacturer: Amphenol NEXUS Technologies

Product Information

Gender:

Male

Body Orientation:

Straight

Type:

Telephone Plug

Mounting Type:

Plug-In

No of Poles/ Way:

Actual Diameter:

0.281" (7.14mm)

HTSUS:

8536.69.4020

RoHS Status:

RoHS Compliant

Operating Temperature:

Internal Switch(s):

Does Not Contain Switch

Shielding:

Number of Positions/Contacts:

4 Conductors, 4 Contacts

Checking for live stock

The Amphenol TP-101 is a rugged, 4-conductor male phone plug connector designed for inline cable applications in demanding audio and communications environments. With an overall diameter of 7.14 mm (0.281″) and a length of approximately 19.3 mm (0.761″), it meets the legacy MIL-C-9177 / M9177/2-1 U-174/U standard used in aviation headsets and intercom systems. Its nickel-plated copper-alloy contacts and plastic (thermoplastic/polyamide) body offer durability and corrosion resistance, well-suited for professional audio, military, and other rugged-use cases.

Core Capabilities of the Amphenol Technologies Audio Connector Jack

Legacy U-174/U interface compliance ensures compatibility with aviation headset jacks and ground-crew gear.
Four-conductor (TRRS) design supports stereo audio plus microphone or intercom signals in one plug.
Compact and robust construction, 7.14 mm diameter plug that handles field use without excessive bulk.
Nickel plating on copper-alloy contacts enhances corrosion resistance and ensures reliable signal integrity.
Free-hanging, in-line mount style facilitates integration into custom cable assemblies with minimal tooling.
RoHS-compliant option, enabling use in regulated manufacturing environments.

Designed for Reliable Communications & Audio Interfaces

The TP-101 is built to keep up no matter how often its plugged in, handled, or exposed to harsh conditions. Its sleek design matches the U-174/U legacy plug standard, so it fits right in with the systems you already have, no adapters required. With a sturdy build and reliable shape, it keeps audio clear and connections solid, even in situations where every second counts and failure is not an option.

Product Usage Scenarios

Aviation headset cable assemblies (military and general aviation).
Ground-crew and cockpit intercom systems.
Portable communication rigs, field-deployment headsets, and ruggedised audio wiring.
Audio-visual systems in broadcast or event-support settings.
Custom cable assemblies.
Professional audio and communications equipment.

Datasheet - TP-101(Technical Reference)

TP-101 Drawing(Product Drawings)
