Actual Diameter:
0.146" (3.70mm)
HTSUS:
8536.69.4030
RoHS Status:
ROHS3 Compliant
Thread Size:
Whitworth (UK)
Operating Temperature:
-20°C ~ 70°C
Panel Hole Size:
0.323" (8.20mm)
Industry Recognized Mating Diameter:
3.50mm (0.141", 1/8", Mini Plug) - Headphone
Internal Switch(s):
Three Switches
Shielding:
Unshielded
Voltage - Rated:
12VAC/DC
Cable Opening:
-
Insulation Color:
-
REACH Status:
REACH Unaffected
Includes:
2 pcs - 1 Connector, 1 Nut
Signal Lines:
Stereo (3 Conductor, TRS)
Number of Positions/Contacts:
3 Conductors, 6 Contacts
Package:
Bulk
Gender:
Female
Connector Type:
Phone Jack
Moisture Sensitivity Level (MSL):
Not Applicable
Body Material:
-
Termination:
Solder Eyelet(s)
standardLeadTime:
35 Weeks
Current Rating (Amps):
1 A
Housing Material:
Plastic
Body Color:
Black
Features:
Mounting Hardware, Thread Lock
Mounting Type:
Panel Mount, Through Hole, Right Angle
Mating Length/Depth:
0.732" (18.60mm)
Series:
4802
Contact Material - Plating:
Gold
Contact Material:
Brass
ECCN:
EAR99

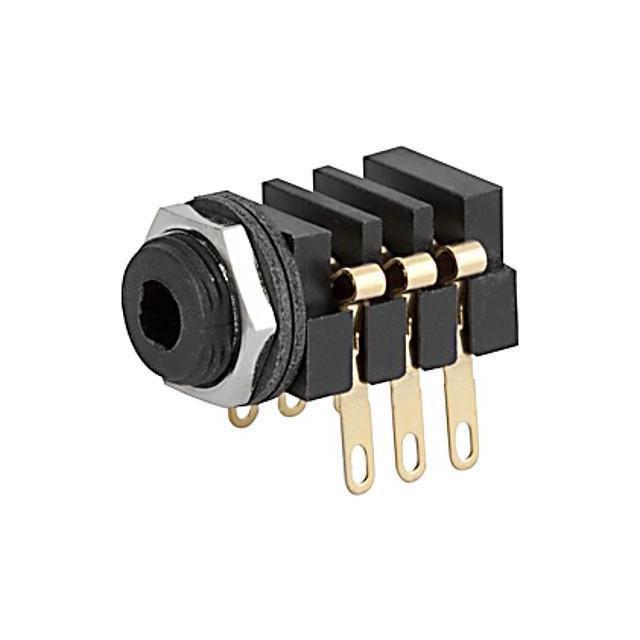

This is manufactured by Schurter Inc.. The manufacturer part number is 4802.2310. Its actual diameter is 0.146" (3.70mm). It is assigned with possible HTSUS value of 8536.69.4030. The product is rohs3 compliant. It has a typical thread size of whitworth (uk). The product has -20°c ~ 70°c operating temperature range. The product features a panel hole size of 0.323" (8.20mm). The product has 3.50mm (0.141", 1/8", mini plug) - headphone industrial recognised mating diameter. Internal switch options: three switches. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 12vac/dc. In addition, it is reach unaffected. The product is also supplied with 2 pcs - 1 connector, 1 nut. Features stereo (3 conductor, trs) signal lines. The product consists of 3 conductors, 6 contacts positions or contacts. It is shipped in bulk package . In addition, female is the available "Gender" of the product. phone jack Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. The product features solder eyelet(s) termination style. It has a long 35 weeks standard lead time. Additionally, the product's output is 1 a. The product also features robust plastic housing material. The body has a classic black colour. The splendid features of the product include mounting hardware, thread lock. The product is available in panel mount, through hole, right angle configuration. The product has 0.732" (18.60mm) mating length or depth. The product 4802, is a highly preferred choice for users. While the contact is gold. The product is made from sturdy brass materials. The product is designated with the ear99 code number.
