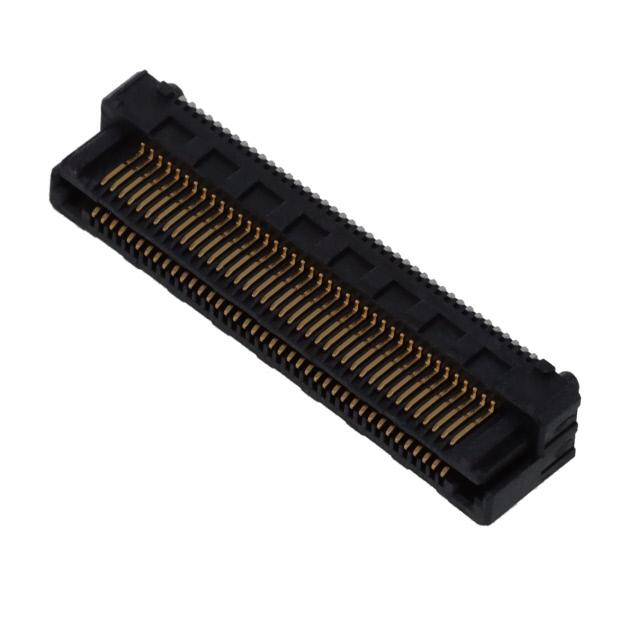

Samtec Inc. LSHM-140-04.0-L-DV-A-N-TR

LSHM-140-04-0-L-DV-A-N-TR Samtec Inc. LSHM-140-04.0-L-DV-A-N-TR
Samtec Inc.

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Height Above Board:
0.215" (5.46mm)
Contact Finish Thickness:
10.0µin (0.25µm)
Number of Positions:
80
title:
LSHM-140-04.0-L-DV-A-N-TR
REACH Status:
REACH Unaffected
edacadModel:
LSHM-140-04.0-L-DV-A-N-TR Models
Number of Rows:
2
edacadModelUrl:
/en/models/8043469
Manufacturer:
Samtec Inc.
Connector Type:
Self Mating, Non-Gendered, Hermaphroditic
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
6 Weeks
Features:
Board Guide
Mounting Type:
Surface Mount
Series:
Razor Beam™ LSHM
Packaging:
Tape & Reel (TR)
Mated Stacking Heights:
6.5mm, 7mm, 8mm, 10mm
Pitch:
0.020" (0.50mm)
Base Product Number:
LSHM-140
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is LSHM-140-04.0-L-DV-A-N-TR. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is 0.215" (5.46mm) high above board. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 80. In addition, it is reach unaffected. It comes in 2 of rows. The samtec inc.'s product offers user-desired applications. self mating, non-gendered, hermaphroditic Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has a long 6 weeks standard lead time. The splendid features of the product include board guide. The product is available in surface mount configuration. The product razor beam™ lshm, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The mated stacking heights of a bespoke product includes 6.5mm, 7mm, 8mm, 10mm. Moreover, the product is 0.020" (0.50mm). Moreover, it corresponds to lshm-140, a base product number of the product. The product is designated with the ear99 code number.
