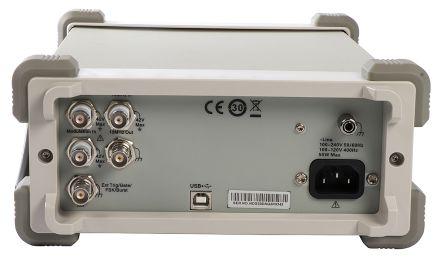

RS Pro Arbitrary Waveform Generator 160MHz

123-6464 RS Pro Arbitrary Waveform Generator 160MHz
123-6464
123-6464
ET16824647
ET16824647
RS Pro

Product Information

Dimensions:
344 x 261 x 105mm
Width:
261mm
Minimum Pulse Width:
50ns
Maximum Storage:
8
Inputs:
External Trigger
Minimum Frequency:
1 μHz
Waveform Memory per Channel:
16k points
Minimum Frequency Triangle Ramps:
1µHz
Maximum Frequency:
160MHz
Maximum Operating Temperature:
+40°C
Connector Type:
BNC
Length:
344mm
Interface Type:
USB Device, USB Host
Maximum Output Amplitude:
20V Pk-Pk
Resolution:
1 μHz
Arbitrary Waveforms:
Yes
Display Type:
TFT LCD
Rise - Fall Time:
380s
Maximum Sampling Frequency:
500Msps
Weight:
2.8kg
Sweep:
Linear, Logarithmic
Height:
105mm
Minimum Operating Temperature:
0°C
Maximum Frequency Triangle Ramps:
4MHz
Data Entry:
Keyboard
RoHs Compliant
Checking for live stock

This is Arbitrary Waveform Generator 160MHz manufactured by RS Pro. The manufacturer part number is 123-6464. The given dimensions of the product include 344 x 261 x 105mm. Furthermore, the product is 261mm wide. It has a minimum 50ns pulse width . With 8 maximum storage . It has external trigger inputs . It has a minimum 1 μhz frequency . It exhibits 16k points waveform memory per channel . Additionally, it has 1µhz minimum frequency triangle ramps . It features 160mhz of maximum frequency. It has a maximum operating temperature of +40°c. bnc Connector type offer robust functionality. Its accurate length is 344mm. It is a type of usb device, usb host interface. It has a maximum 20v pk-pk of output amplitude . Features 1 μhz resolution. It includes arbitrary waveforms yes . It features a remarkable tft lcd display. It has about 380s rise - fall time . It has a maximum 500msps sampling frequency . The typical product's weight is 2.8kg. With linear, logarithmic sweep . In addition, the height is 105mm. Whereas, the minimum operating temperature of the product is 0°c. The maximum frequency triangle ramps are about 4mhz . Data cab be entered using a keyboard .

pdf icon
Datasheet(Technical Reference)
pdf icon
Quick Start Manual(Technical Reference)
