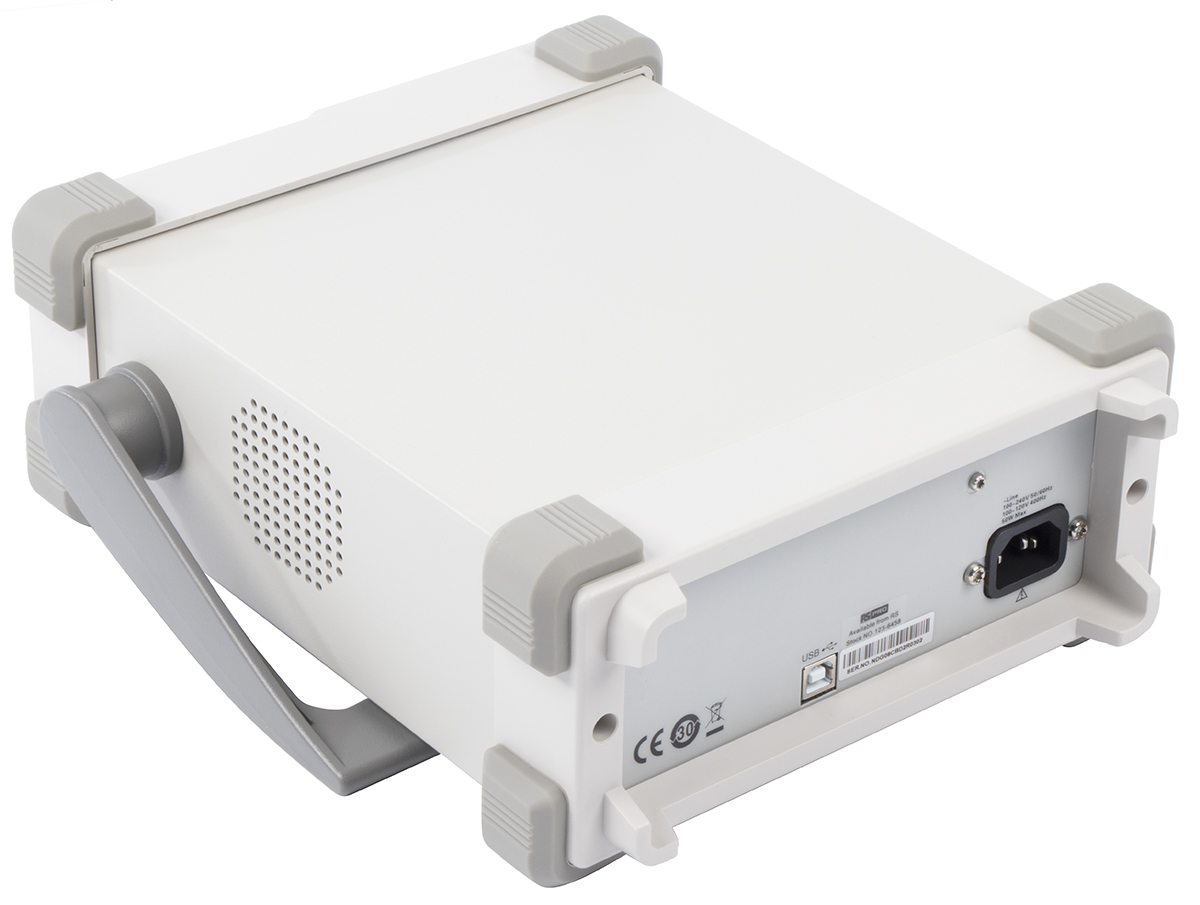

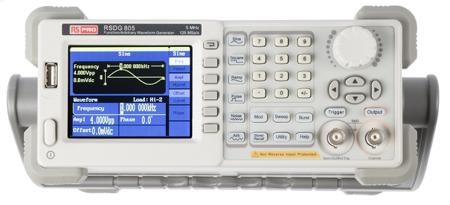

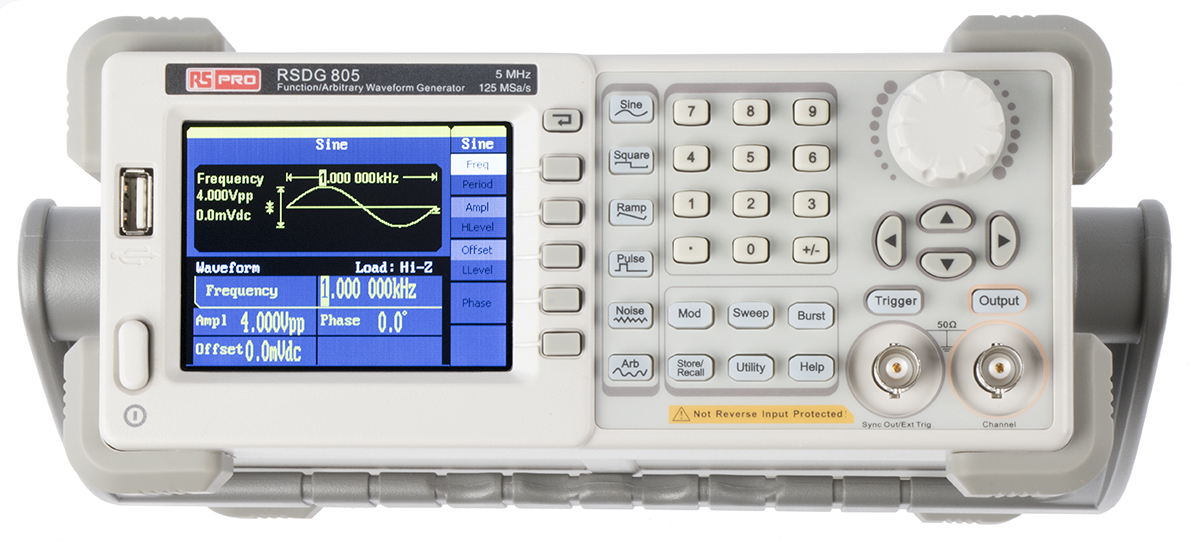

RS Pro Arbitrary Waveform Generator 5MHz

123-6458 RS Pro Arbitrary Waveform Generator 5MHz
123-6458
123-6458
ET16730372
ET16730372
RS Pro

Product Information

Dimensions:
229 x 281 x 105mm
Width:
281mm
Minimum Pulse Width:
50ns
Maximum Storage:
10
Inputs:
External Trigger
Minimum Frequency:
0 MHz
Waveform Memory per Channel:
16k points
Minimum Frequency Triangle Ramps:
1µHz
Maximum Frequency:
5MHz
Maximum Operating Temperature:
+40°C
Connector Type:
BNC
Length:
229mm
Interface Type:
USB Device, USB Host
Maximum Output Amplitude:
10V Pk-Pk
Resolution:
1 μHz
Arbitrary Waveforms:
Yes
Display Type:
TFT LCD
Rise - Fall Time:
1.6ks
Maximum Sampling Frequency:
125Msps
Weight:
2.6kg
Sweep:
Linear, Logarithmic
Height:
105mm
Minimum Operating Temperature:
0°C
Maximum Frequency Triangle Ramps:
300kHz
Data Entry:
Keyboard
RoHs Compliant
Checking for live stock

This is Arbitrary Waveform Generator 5MHz manufactured by RS Pro. The manufacturer part number is 123-6458. The given dimensions of the product include 229 x 281 x 105mm. Furthermore, the product is 281mm wide. It has a minimum 50ns pulse width . With 10 maximum storage . It has external trigger inputs . It has a minimum 0 mhz frequency . It exhibits 16k points waveform memory per channel . Additionally, it has 1µhz minimum frequency triangle ramps . It features 5mhz of maximum frequency. It has a maximum operating temperature of +40°c. bnc Connector type offer robust functionality. Its accurate length is 229mm. It is a type of usb device, usb host interface. It has a maximum 10v pk-pk of output amplitude . Features 1 μhz resolution. It includes arbitrary waveforms yes . It features a remarkable tft lcd display. It has about 1.6ks rise - fall time . It has a maximum 125msps sampling frequency . The typical product's weight is 2.6kg. With linear, logarithmic sweep . In addition, the height is 105mm. Whereas, the minimum operating temperature of the product is 0°c. The maximum frequency triangle ramps are about 300khz . Data cab be entered using a keyboard .

pdf icon
Quick Start Manual(Technical Reference)
pdf icon
PSTI Statement of Compliance(Technical Reference)
pdf icon
RS Pro ARBITRARY/FUNCTION WAVEFORM GENERATOR SDG800 SERIES Datasheet(Technical Reference)
