HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C (TA)
Channel-to-Channel Matching (ΔRon):
2Ohm
Package / Case:
16-TSSOP (0.173", 4.40mm Width)
Switch Time (Ton, Toff) (Max):
85ns, 110ns
Current - Leakage (IS(off)) (Max):
100nA
Voltage - Supply, Dual (V±):
±12V
-3db Bandwidth:
430MHz
REACH Status:
REACH Unaffected
edacadModel:
TMUX4051PWR Models
Multiplexer/Demultiplexer Circuit:
8:1
edacadModelUrl:
/en/models/16982029
Package:
Tape & Reel (TR)
Channel Capacitance (CS(off), CD(off)):
3pF, 9pF
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - Supply, Single (V+):
5V ~ 24V
standardLeadTime:
6 Weeks
Switch Circuit:
SP8T - Open
Number of Circuits:
1
Mounting Type:
Surface Mount
Series:
-
Crosstalk:
-90dB @ 1MHz
On-State Resistance (Max):
40Ohm
Supplier Device Package:
16-TSSOP
Charge Injection:
2pC
ECCN:
EAR99

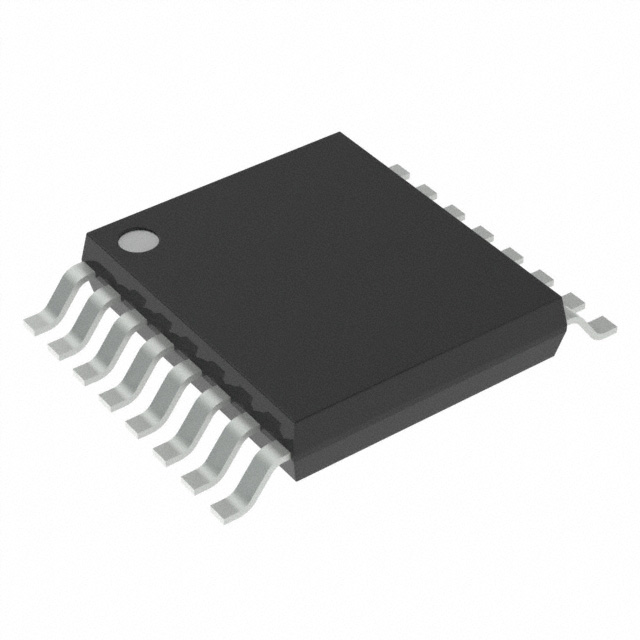

This is manufactured by Texas Instruments. The manufacturer part number is TMUX4051PWR. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -55°c ~ 125°c (ta) operating temperature range. Features 2ohm of channel-to-channel matching. Moreover, the product comes in 16-tssop (0.173", 4.40mm width). Has a 85ns, 110ns maximum switch time. The maximum current leakage of the product included 100na. The typical supply voltage ±12v. A 430mhz of bandwidth. In addition, it is reach unaffected. Ratio of multiplexer/demultiplexer circuit 8:1. It is shipped in tape & reel (tr) package . Features 3pf, 9pf channel capacitance. Its typical moisture sensitivity level is 1 (unlimited). Single voltage supply of 5v ~ 24v. It has a long 6 weeks standard lead time. Features switch circuit of sp8t - open. It integrates 1 circuits. The product is available in surface mount configuration. A -90db @ 1mhz of crosstalk. It has a maximum on-state resistance of 40ohm. 16-tssop is the supplier device package value. It has 2pc charge injection parameters. The product is designated with the ear99 code number.
