HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 125°C (TA)
Channel-to-Channel Matching (ΔRon):
350mOhm
Package / Case:

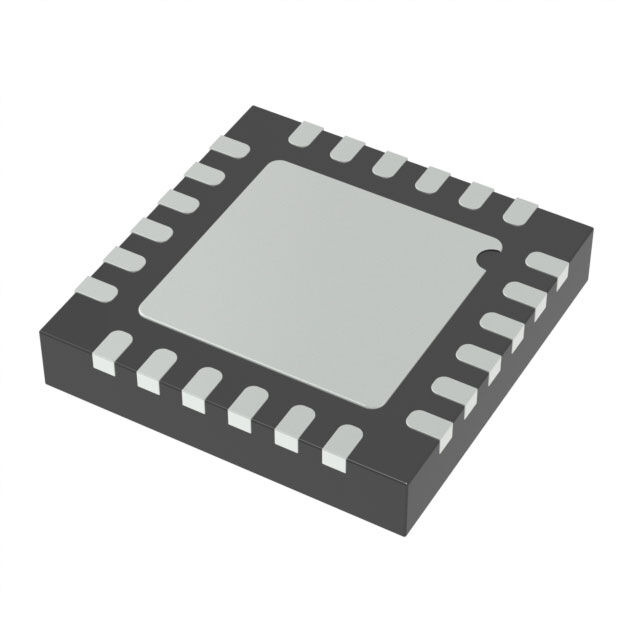

24-VFQFN Exposed Pad, CSP
Switch Time (Ton, Toff) (Max):
530ns, 230ns
Current - Leakage (IS(off)) (Max):
250pA
Voltage - Supply, Dual (V±):
±9V ~ 22V
-3db Bandwidth:
160MHz
REACH Status:
REACH Unaffected
edacadModel:
ADGS5412BCPZ Models
Multiplexer/Demultiplexer Circuit:
1:1
edacadModelUrl:
/en/models/7390043
Package:
Tray
Channel Capacitance (CS(off), CD(off)):
17pF, 17pF
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Voltage - Supply, Single (V+):
9V ~ 40V
standardLeadTime:
13 Weeks
Switch Circuit:
SPST - NO
Number of Circuits:
4
Mounting Type:
Surface Mount
Series:
-
Crosstalk:
-70dB @ 1MHz
On-State Resistance (Max):
10Ohm
Supplier Device Package:
24-LFCSP (4x4)
Charge Injection:
310pC
Base Product Number:
ADGS5412
ECCN:
EAR99
This is manufactured by Analog Devices Inc.. The manufacturer part number is ADGS5412BCPZ. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 125°c (ta) operating temperature range. Features 350mohm of channel-to-channel matching. Moreover, the product comes in 24-vfqfn exposed pad, csp. Has a 530ns, 230ns maximum switch time. The maximum current leakage of the product included 250pa. The typical supply voltage ±9v ~ 22v. A 160mhz of bandwidth. In addition, it is reach unaffected. Ratio of multiplexer/demultiplexer circuit 1:1. It is shipped in tray package . Features 17pf, 17pf channel capacitance. Its typical moisture sensitivity level is 3 (168 hours). Single voltage supply of 9v ~ 40v. It has a long 13 weeks standard lead time. Features switch circuit of spst - no. It integrates 4 circuits. The product is available in surface mount configuration. A -70db @ 1mhz of crosstalk. It has a maximum on-state resistance of 10ohm. 24-lfcsp (4x4) is the supplier device package value. It has 310pc charge injection parameters. Moreover, it corresponds to adgs5412, a base product number of the product. The product is designated with the ear99 code number.
