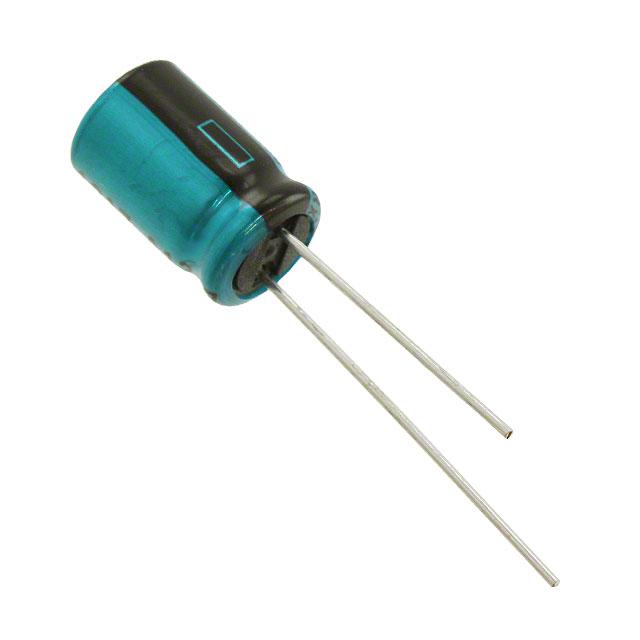

Rubycon 25RX30220M8X11.5
Product Information
Diameter:
8mm
Ripple Current:
360mA
Dimensions:
8 (Dia.) x 11.5mm
Mounting Type:
Through Hole
Series:
RX30
Height:
11.5mm
Capacitance:
220µF
Voltage:
25V dc
Leakage Current:
0.01 CV or 3 μA
Lifetime:
2000h
Lead Pitch:
3.5mm
Maximum Operating Temperature:
+130°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Technology:
Electrolytic
Ratings:
AEC-Q200
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
220 µF
Operating Temperature:
-40°C ~ 130°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
25 V
Height - Seated (Max):
0.531" (13.50mm)
Ripple Current @ High Frequency:
360 mA @ 100 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
252 mA @ 120 Hz
edacadModel:
25RX30220M8X11.5 Models
Applications:
Automotive
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/3134186
Impedance:
220 mOhms
Package:
Bulk
Size / Dimension:
0.315" Dia (8.00mm)
standardLeadTime:
20 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
RX30
Lifetime @ Temp.:
2000 Hrs @ 130°C
Lead Spacing:
0.138" (3.50mm)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 25RX30220M8X11.5 on website for other similar products.
We accept all major payment methods for all products including ET11900323. Please check your shopping cart at the time of order.
You can order Rubycon brand products with 25RX30220M8X11.5 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminum Electrolytic Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Rubycon 25RX30220M8X11.5. You can also check on our website or by contacting our customer support team for further order details on Rubycon 25RX30220M8X11.5.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11900323 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Rubycon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11900323.
Yes. We ship 25RX30220M8X11.5 Internationally to many countries around the world.
This is manufactured by Rubycon. The manufacturer part number is 25RX30220M8X11.5. Its diameter is 8mm. Furthermore, 360ma is the ripple current. The given dimensions of the product include 8 (dia.) x 11.5mm. The product is available in through hole configuration. The product rx30, is a highly preferred choice for users. In addition, the height is 11.5mm. It provides a 220µf of capacitance value. It carries a 25v dc of voltage. It harbors 0.01 cv or 3 μa of leakage current. It provides a long-lasting service for a period of 2000h. The lead features 3.5mm pitch. It has a maximum operating temperature of +130°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. This product use electrolytic technology. It is rated with aec-q200. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 220 µf of capacitance value. The product has -40°c ~ 130°c operating temperature range. Moreover, the product comes in radial, can. It also exhibits voltage rating of 25 v. It has the maximum seated height of 0.531" (13.50mm). Additionally, it carries a ripple current and high frequency of 360 ma @ 100 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 252 ma @ 120 hz. The product is widely employed in automotive. It has an impedance value of 220 mohms. It is shipped in bulk package . The product's diameters include 0.315" dia (8.00mm). It has a long 20 weeks standard lead time. Its typical moisture sensitivity level is not applicable. This product offers longer life span for 2000 hrs @ 130°c. It is assigned with 0.138" (3.50mm) of lead spacing. The product is designated with the ear99 code number.
