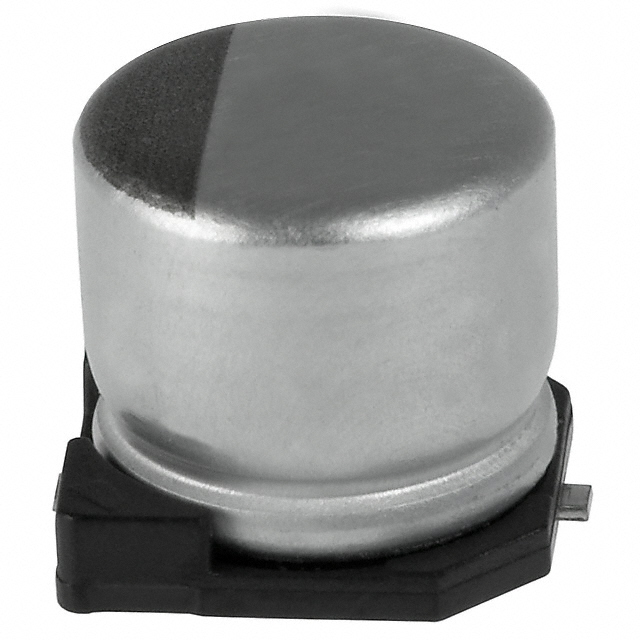

Nippon Chemi-Con 100μF Electrolytic Capacitor 35V dc, Surface Mount - EMZA350ARA101MF80G
Product Information
Diameter:
6.3mm
Ripple Current:
280mArms
Polarised:
Polar
Dimensions:
6.3 x 7.7mm
Mounting Type:
Surface Mount
Series:
MZA
Equivalent Series Resistance:
340mΩ
Height:
7.7mm
Capacitance:
100µF
Voltage:
35V dc
Leakage Current:
3 μA
Lifetime:
2000h
Lead Pitch:
1.9mm
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Minimum Operating Temperature:
-55°C
Technology:
Aluminium Electrolytic
Ratings:
AEC-Q200
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
100 µF
Operating Temperature:
-55°C ~ 105°C
Package / Case:
Radial, Can - SMD
Tolerance:
±20%
Voltage - Rated:
35 V
Height - Seated (Max):
0.315" (8.00mm)
Ripple Current @ High Frequency:
280 mA @ 100 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
112 mA @ 120 Hz
edacadModel:
EMZA350ARA101MF80G Models
Applications:
Automotive
Surface Mount Land Size:
0.260" L x 0.260" W (6.60mm x 6.60mm)
edacadModelUrl:
/en/models/757204
Impedance:
340 mOhms
Package:
Tape & Reel (TR)
Size / Dimension:
0.248" Dia (6.30mm)
standardLeadTime:
40 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Series:
Alchip™- MZA
Lifetime @ Temp.:
2000 Hrs @ 105°C
Lead Spacing:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search EMZA350ARA101MF80G on website for other similar products.
We accept all major payment methods for all products including ET24732755. Please check your shopping cart at the time of order.
You can order CHEMI-CON brand products with EMZA350ARA101MF80G directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminium Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nippon Chemi-Con 100μF Electrolytic Capacitor 35V dc, Surface Mount - EMZA350ARA101MF80G. You can also check on our website or by contacting our customer support team for further order details on Nippon Chemi-Con 100μF Electrolytic Capacitor 35V dc, Surface Mount - EMZA350ARA101MF80G.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET24732755 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "CHEMI-CON" products on our website by using Enrgtech's Unique Manufacturing Part Number ET24732755.
Yes. We ship EMZA350ARA101MF80G Internationally to many countries around the world.
This is Nippon Chemi-Con 100μF Electrolytic Capacitor 35V dc Surface Mount - manufactured by CHEMI-CON. The manufacturer part number is EMZA350ARA101MF80G. Its diameter is 6.3mm. Furthermore, 280marms is the ripple current. Furthermore, it is polar polarised. The given dimensions of the product include 6.3 x 7.7mm. The product is available in surface mount configuration. The product mza, is a highly preferred choice for users. It has 340mω equivalent series resistance. In addition, the height is 7.7mm. It provides a 100µf of capacitance value. It carries a 35v dc of voltage. It harbors 3 μa of leakage current. It provides a long-lasting service for a period of 2000h. The lead features 1.9mm pitch. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. This product use aluminium electrolytic technology. It is rated with aec-q200. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 100 µf of capacitance value. The product has -55°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can - smd. It also exhibits voltage rating of 35 v. It has the maximum seated height of 0.315" (8.00mm). Additionally, it carries a ripple current and high frequency of 280 ma @ 100 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 112 ma @ 120 hz. The product is widely employed in automotive. It has typical surface-mount land sizes, such as 0.260" l x 0.260" w (6.60mm x 6.60mm). It has an impedance value of 340 mohms. It is shipped in tape & reel (tr) package . The product's diameters include 0.248" dia (6.30mm). It has a long 40 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product alchip™- mza, is a highly preferred choice for users. This product offers longer life span for 2000 hrs @ 105°c. The product is designated with the ear99 code number.
