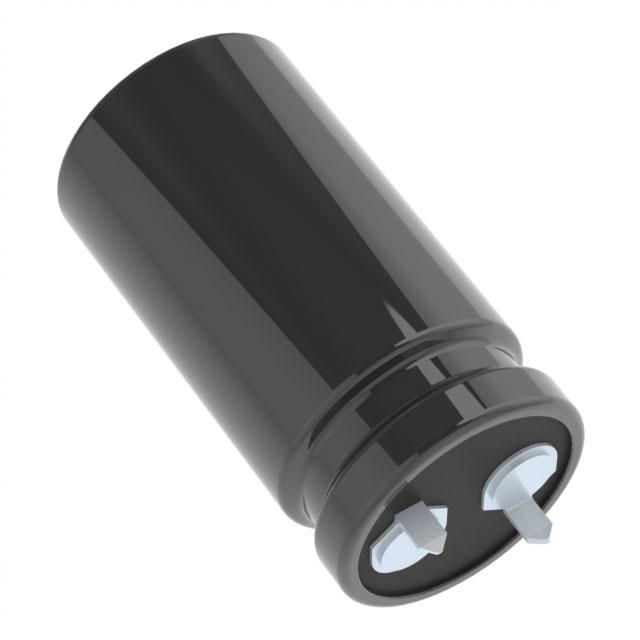

Nippon Chemi-Con 150μF Electrolytic Capacitor 450V dc, Through Hole - EKMS451VSN151MP40S
Product Information
Diameter:
22mm
Ripple Current:
0.94Arms
Dimensions:
22 (Dia.) x 40mm
Mounting Type:
Snap-In
Series:
KMS
Dissipation Factor:
0.2%
Capacitance:
150µF
Length:
40mm
Voltage:
450V dc
Leakage Current:
<=3√CV μA @ 5 min
Lifetime:
3000h
Lead Pitch:
10mm
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Minimum Operating Temperature:
-25°C
Technology:
Aluminium Electrolytic
Ratings:
-
HTSUS:
8532.22.0040
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
150 µF
Operating Temperature:
-25°C ~ 105°C
Package / Case:
Radial, Can - Snap-In
Tolerance:
±20%
Voltage - Rated:
450 V
Height - Seated (Max):
1.673" (42.50mm)
Ripple Current @ High Frequency:
1.3442 A @ 50 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
940 mA @ 120 Hz
Applications:
General Purpose
Surface Mount Land Size:
-
Package:
Bulk
Size / Dimension:
0.866" Dia (22.00mm)
standardLeadTime:
22 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
KMS
Lifetime @ Temp.:
3000 Hrs @ 105°C
Lead Spacing:
0.394" (10.00mm)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search EKMS451VSN151MP40S on website for other similar products.
We accept all major payment methods for all products including ET24730924. Please check your shopping cart at the time of order.
You can order CHEMI-CON brand products with EKMS451VSN151MP40S directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminium Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nippon Chemi-Con 150μF Electrolytic Capacitor 450V dc, Through Hole - EKMS451VSN151MP40S. You can also check on our website or by contacting our customer support team for further order details on Nippon Chemi-Con 150μF Electrolytic Capacitor 450V dc, Through Hole - EKMS451VSN151MP40S.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET24730924 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "CHEMI-CON" products on our website by using Enrgtech's Unique Manufacturing Part Number ET24730924.
Yes. We ship EKMS451VSN151MP40S Internationally to many countries around the world.
This is Nippon Chemi-Con 150μF Electrolytic Capacitor 450V dc Through Hole - manufactured by CHEMI-CON. The manufacturer part number is EKMS451VSN151MP40S. Its diameter is 22mm. Furthermore, 0.94arms is the ripple current. The given dimensions of the product include 22 (dia.) x 40mm. The product is available in snap-in configuration. The product kms, is a highly preferred choice for users. It provides a dissipation factor of 0.2%. It provides a 150µf of capacitance value. Its accurate length is 40mm. It carries a 450v dc of voltage. It harbors <=3√cv μa @ 5 min of leakage current. It provides a long-lasting service for a period of 3000h. The lead features 10mm pitch. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -25°c. This product use aluminium electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0040. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 150 µf of capacitance value. The product has -25°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can - snap-in. It also exhibits voltage rating of 450 v. It has the maximum seated height of 1.673" (42.50mm). Additionally, it carries a ripple current and high frequency of 1.3442 a @ 50 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 940 ma @ 120 hz. The product is widely employed in general purpose. It is shipped in bulk package . The product's diameters include 0.866" dia (22.00mm). It has a long 22 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The product is available in through hole configuration. This product offers longer life span for 3000 hrs @ 105°c. It is assigned with 0.394" (10.00mm) of lead spacing. The product is designated with the ear99 code number.
