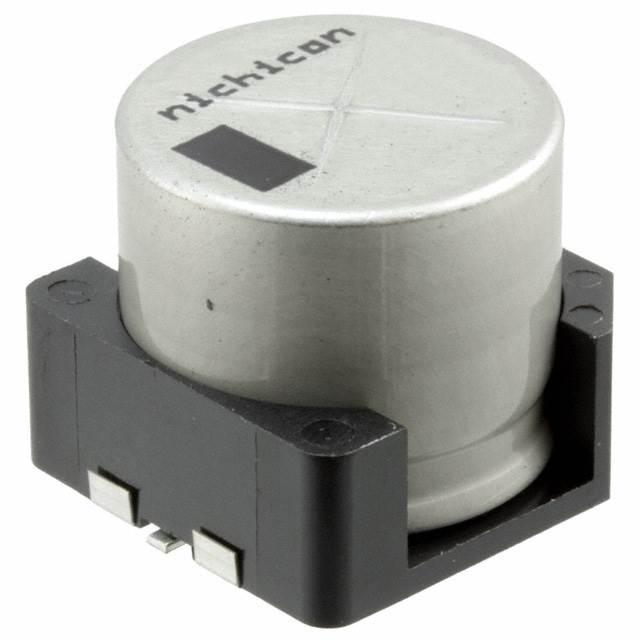

Nichicon UUE1E681MNS1MS
Product Information
Diameter:
18mm
Ripple Current:
1.2A
Dimensions:
18 (Dia.) x 16.5mm
Mounting Type:
Surface Mount
Series:
UE
Height:
16.5mm
Capacitance:
680µF
Voltage:
25V dc
Leakage Current:
4 μA
Lifetime:
5000h
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Minimum Operating Temperature:
-55°C
Polarised:
Polar
Technology:
Aluminium Electrolytic
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
680 µF
Operating Temperature:
-55°C ~ 125°C
Package / Case:
Radial, Can - SMD
Tolerance:
±20%
Voltage - Rated:
25 V
Height - Seated (Max):
0.689" (17.50mm)
Ripple Current @ High Frequency:
1.2 A @ 100 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
804 mA @ 120 Hz
edacadModel:
UUE1E681MNS1MS Models
Applications:
Automotive
Surface Mount Land Size:
0.752" L x 0.752" W (19.10mm x 19.10mm)
edacadModelUrl:
/en/models/2549877
Package:
Tape & Reel (TR)
Size / Dimension:
0.709" Dia (18.00mm)
standardLeadTime:
26 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Series:
UUE
Lifetime @ Temp.:
5000 Hrs @ 125°C
Lead Spacing:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search UUE1E681MNS1MS on website for other similar products.
We accept all major payment methods for all products including ET13489036. Please check your shopping cart at the time of order.
You can order Nichicon brand products with UUE1E681MNS1MS directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminium Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nichicon UUE1E681MNS1MS. You can also check on our website or by contacting our customer support team for further order details on Nichicon UUE1E681MNS1MS.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13489036 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nichicon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13489036.
Yes. We ship UUE1E681MNS1MS Internationally to many countries around the world.
This is manufactured by Nichicon. The manufacturer part number is UUE1E681MNS1MS. Its diameter is 18mm. Furthermore, 1.2a is the ripple current. The given dimensions of the product include 18 (dia.) x 16.5mm. The product is available in surface mount configuration. The product ue, is a highly preferred choice for users. In addition, the height is 16.5mm. It provides a 680µf of capacitance value. It carries a 25v dc of voltage. It harbors 4 μa of leakage current. It provides a long-lasting service for a period of 5000h. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Furthermore, it is polar polarised. This product use aluminium electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 680 µf of capacitance value. The product has -55°c ~ 125°c operating temperature range. Moreover, the product comes in radial, can - smd. It also exhibits voltage rating of 25 v. It has the maximum seated height of 0.689" (17.50mm). Additionally, it carries a ripple current and high frequency of 1.2 a @ 100 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 804 ma @ 120 hz. The product is widely employed in automotive. It has typical surface-mount land sizes, such as 0.752" l x 0.752" w (19.10mm x 19.10mm). It is shipped in tape & reel (tr) package . The product's diameters include 0.709" dia (18.00mm). It has a long 26 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product uue, is a highly preferred choice for users. This product offers longer life span for 5000 hrs @ 125°c. The product is designated with the ear99 code number.
