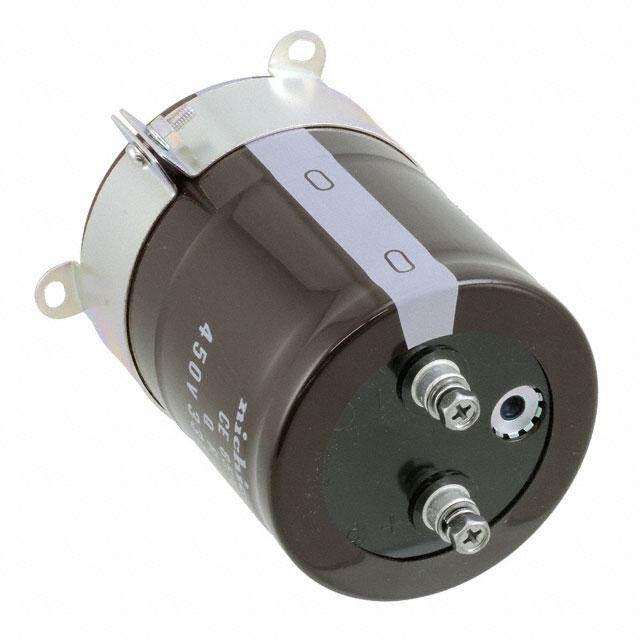

Nichicon LQR2W332MSEH
Product Information
Diameter:
76.2mm
Ripple Current:
11.8A
Dimensions:
76.2 (Dia.) x 100mm
Mounting Type:
Screw Terminal
Series:
QR
Height:
100mm
Capacitance:
3300µF
Voltage:
450V dc
Leakage Current:
3650 μA
Lifetime:
5000h
Maximum Operating Temperature:
+85°C
Tolerance:
±20%
Minimum Operating Temperature:
-25°C
Technology:
Aluminium Electrolytic
Ratings:
-
HTSUS:
8532.22.0085
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
3300 µF
Operating Temperature:
-25°C ~ 85°C
Package / Case:
Radial, Can - Screw Terminals
Tolerance:
±20%
Voltage - Rated:
450 V
Height - Seated (Max):
4.055" (103.00mm)
Ripple Current @ High Frequency:
16.52 A @ 10 kHz
REACH Status:
REACH Affected
Ripple Current @ Low Frequency:
11.8 A @ 120 Hz
edacadModel:
LQR2W332MSEH Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/2549365
Package:
Bulk
Size / Dimension:
3.000" Dia (76.20mm)
standardLeadTime:
62 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Chassis Mount
Series:
LQR
Lifetime @ Temp.:
5000 Hrs @ 85°C
Lead Spacing:
1.252" (31.80mm)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search LQR2W332MSEH on website for other similar products.
We accept all major payment methods for all products including ET12220563. Please check your shopping cart at the time of order.
You can order Nichicon brand products with LQR2W332MSEH directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminium Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nichicon LQR2W332MSEH. You can also check on our website or by contacting our customer support team for further order details on Nichicon LQR2W332MSEH.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12220563 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nichicon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12220563.
Yes. We ship LQR2W332MSEH Internationally to many countries around the world.
This is manufactured by Nichicon. The manufacturer part number is LQR2W332MSEH. Its diameter is 76.2mm. Furthermore, 11.8a is the ripple current. The given dimensions of the product include 76.2 (dia.) x 100mm. The product is available in screw terminal configuration. The product qr, is a highly preferred choice for users. In addition, the height is 100mm. It provides a 3300µf of capacitance value. It carries a 450v dc of voltage. It harbors 3650 μa of leakage current. It provides a long-lasting service for a period of 5000h. It has a maximum operating temperature of +85°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -25°c. This product use aluminium electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0085. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 3300 µf of capacitance value. The product has -25°c ~ 85°c operating temperature range. Moreover, the product comes in radial, can - screw terminals. It also exhibits voltage rating of 450 v. It has the maximum seated height of 4.055" (103.00mm). Additionally, it carries a ripple current and high frequency of 16.52 a @ 10 khz. In addition, it is reach affected. Its ripple current at low frequency is 11.8 a @ 120 hz. The product is widely employed in general purpose. It is shipped in bulk package . The product's diameters include 3.000" dia (76.20mm). It has a long 62 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The product is available in chassis mount configuration. The product lqr, is a highly preferred choice for users. This product offers longer life span for 5000 hrs @ 85°c. It is assigned with 1.252" (31.80mm) of lead spacing. The product is designated with the ear99 code number.
