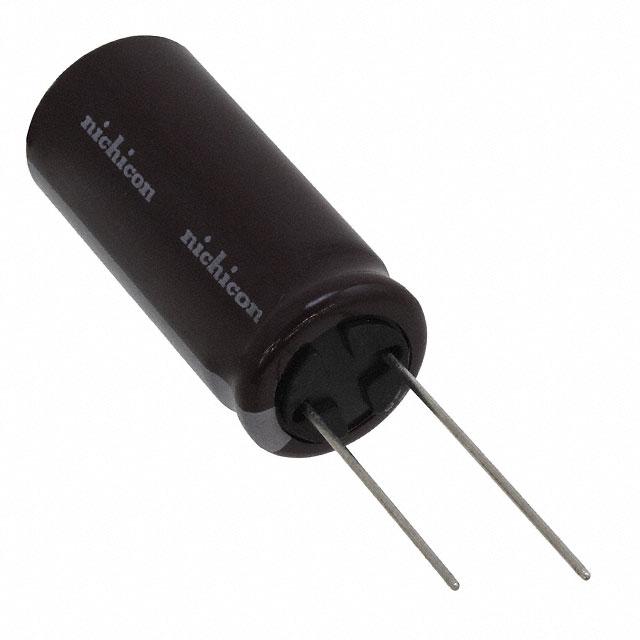

UCP2W101MHD, Nichicon
Product Information
Diameter:
16mm
Ripple Current:
730mArms
Dimensions:
16 x 35.5mm
Mounting Type:
Radial, Through Hole
Series:
CP
Height:
35.5mm
Capacitance:
100µF
Voltage:
450V dc
Leakage Current:
1900 μA
Lifetime:
10000h
Lead Pitch:
7.5mm
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Minimum Operating Temperature:
-25°C
Technology:
Aluminium Electrolytic
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
100 µF
Operating Temperature:
-25°C ~ 105°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
450 V
Height - Seated (Max):
1.476" (37.50mm)
Ripple Current @ High Frequency:
1.095 A @ 100 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
730 mA @ 120 Hz
edacadModel:
UCP2W101MHD Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/4694958
Package:
Bulk
Size / Dimension:
0.630" Dia (16.00mm)
standardLeadTime:
31 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
UCP
Lifetime @ Temp.:
10000 Hrs @ 105°C
Lead Spacing:
0.295" (7.50mm)
ECCN:
EAR99
Checking for live stock
Alternative products
FAQs
Yes. You can also search UCP2W101MHD on website for other similar products.
We accept all major payment methods for all products including ET12158604. Please check your shopping cart at the time of order.
You can order Nichicon brand products with UCP2W101MHD directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminium Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nichicon UCP2W101MHD. You can also check on our website or by contacting our customer support team for further order details on Nichicon UCP2W101MHD.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12158604 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nichicon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12158604.
Yes. We ship UCP2W101MHD Internationally to many countries around the world.
This is manufactured by Nichicon. The manufacturer part number is UCP2W101MHD. Its diameter is 16mm. Furthermore, 730marms is the ripple current. The given dimensions of the product include 16 x 35.5mm. The product is available in radial, through hole configuration. The product cp, is a highly preferred choice for users. In addition, the height is 35.5mm. It provides a 100µf of capacitance value. It carries a 450v dc of voltage. It harbors 1900 μa of leakage current. It provides a long-lasting service for a period of 10000h. The lead features 7.5mm pitch. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -25°c. This product use aluminium electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 100 µf of capacitance value. The product has -25°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can. It also exhibits voltage rating of 450 v. It has the maximum seated height of 1.476" (37.50mm). Additionally, it carries a ripple current and high frequency of 1.095 a @ 100 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 730 ma @ 120 hz. The product is widely employed in general purpose. It is shipped in bulk package . The product's diameters include 0.630" dia (16.00mm). It has a long 31 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The product is available in through hole configuration. The product ucp, is a highly preferred choice for users. This product offers longer life span for 10000 hrs @ 105°c. It is assigned with 0.295" (7.50mm) of lead spacing. The product is designated with the ear99 code number.
