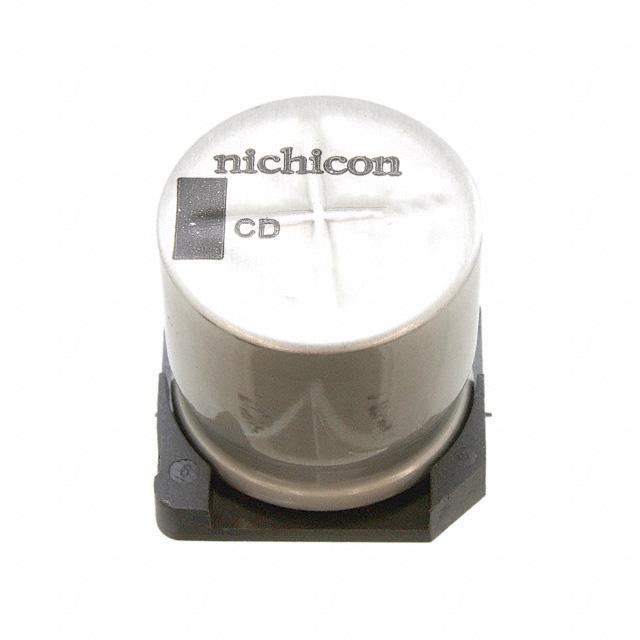

Nichicon UCD1E222MNQ1MS

UCD1E222MNQ1MS Nichicon
UCD1E222MNQ1MS
Nichicon

Product Information

Diameter:
16mm
Ripple Current:
1.8A
Polarised:
Polar
Dimensions:
16 (Dia.) x 16.5mm
Mounting Type:
Surface Mount
Series:
CD
Height:
16.5mm
Capacitance:
2200µF
Voltage:
25V dc
Leakage Current:
3 μA
Lifetime:
5000h
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Minimum Operating Temperature:
-55°C
Technology:
Aluminium Electrolytic
Ratings:
AEC-Q200
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
2200 µF
Operating Temperature:
-55°C ~ 105°C
Package / Case:
Radial, Can - SMD
Tolerance:
±20%
Voltage - Rated:
25 V
Height - Seated (Max):
0.689" (17.50mm)
Ripple Current @ High Frequency:
1.8 A @ 100 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
900 mA @ 120 Hz
Applications:
Automotive
Surface Mount Land Size:
0.673" L x 0.673" W (17.10mm x 17.10mm)
Impedance:
35 mOhms
Package:
Tape & Reel (TR)
Size / Dimension:
0.630" Dia (16.00mm)
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Surface Mount
Series:
UCD
Lifetime @ Temp.:
5000 Hrs @ 105°C
Lead Spacing:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Nichicon. The manufacturer part number is UCD1E222MNQ1MS. Its diameter is 16mm. Furthermore, 1.8a is the ripple current. Furthermore, it is polar polarised. The given dimensions of the product include 16 (dia.) x 16.5mm. The product is available in surface mount configuration. The product cd, is a highly preferred choice for users. In addition, the height is 16.5mm. It provides a 2200µf of capacitance value. It carries a 25v dc of voltage. It harbors 3 μa of leakage current. It provides a long-lasting service for a period of 5000h. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. This product use aluminium electrolytic technology. It is rated with aec-q200. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 2200 µf of capacitance value. The product has -55°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can - smd. It also exhibits voltage rating of 25 v. It has the maximum seated height of 0.689" (17.50mm). Additionally, it carries a ripple current and high frequency of 1.8 a @ 100 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 900 ma @ 120 hz. The product is widely employed in automotive. It has typical surface-mount land sizes, such as 0.673" l x 0.673" w (17.10mm x 17.10mm). It has an impedance value of 35 mohms. It is shipped in tape & reel (tr) package . The product's diameters include 0.630" dia (16.00mm). Its typical moisture sensitivity level is not applicable. The product ucd, is a highly preferred choice for users. This product offers longer life span for 5000 hrs @ 105°c. The product is designated with the ear99 code number.

pdf icon
ALUMINUM ELECTROLYTIC CAPACITORS CD Series Data Sheet(Technical Reference)
pdf icon
Chip Type Tape Spec(Datasheets)
pdf icon
UCD Series Datasheet(Datasheets)
pdf icon
Aluminum Electrolytic Land, Reflow(Datasheets)
pdf icon
Mult Series NRND 23/Jun/2022(PCN Part Status Change)
pdf icon
UCD Series 14/Jul/2022(UNKNOWN TYPE)
