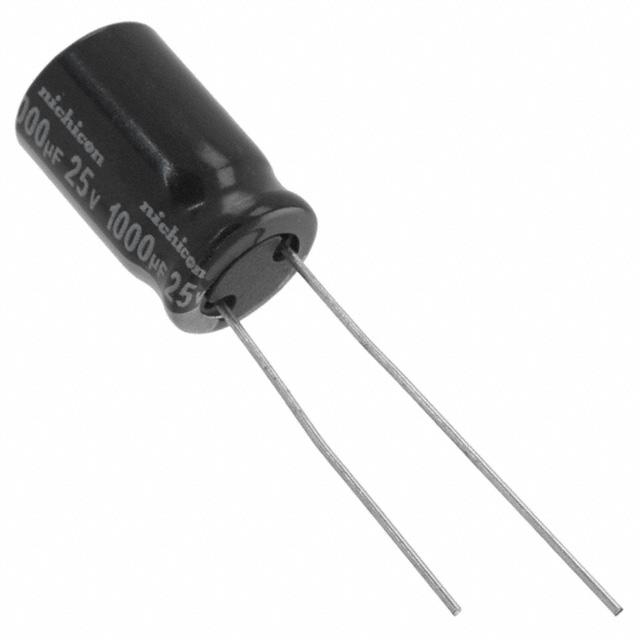

Nichicon UVY1E102MPD
Product Information
The Nichicon UVY1E102MPD is a high-quality, radial-leaded aluminium electrolytic capacitor tailored for varied electronic applications. Featuring a long life span and stable capacitance, the UVY1E102MPD is an excellent solution for stabilizing power supply voltage and filtering high-frequency noise in many circuits.
Diameter:
10mm
Ripple Current:
610mA
Dimensions:
10 (Dia.) x 16mm
Mounting Type:
Radial, Through Hole
Series:
VY
Height:
16mm
Capacitance:
1000µF
Voltage:
25V dc
Leakage Current:
750 μA
Lifetime:
1000h
Lead Pitch:
5mm
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Minimum Operating Temperature:
-55°C
Technology:
Aluminium Electrolytic
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
1000 µF
Operating Temperature:
-55°C ~ 105°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
25 V
Height - Seated (Max):
0.689" (17.50mm)
Ripple Current @ High Frequency:
701.5 mA @ 10 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
610 mA @ 120 Hz
edacadModel:
UVY1E102MPD Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/2428012
Package:
Bulk
Size / Dimension:
0.394" Dia (10.00mm)
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
UVY
Lifetime @ Temp.:
2000 Hrs @ 105°C
Lead Spacing:
0.197" (5.00mm)
Base Product Number:
UVY1E
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search UVY1E102MPD on website for other similar products.
We accept all major payment methods for all products including ET11395207. Please check your shopping cart at the time of order.
You can order Nichicon brand products with UVY1E102MPD directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminium Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nichicon UVY1E102MPD. You can also check on our website or by contacting our customer support team for further order details on Nichicon UVY1E102MPD.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11395207 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nichicon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11395207.
Yes. We ship UVY1E102MPD Internationally to many countries around the world.
The UVY1E102MPD is a 25V aluminium electrolytic capacitor manufactured by Nichicon. It is a radial through-hole type capacitor widely used in electronic devices for power supply and filter applications. This capacitor has a capacitance of 1000µF and is designed for use in a wide range of temperature and frequency conditions.
Physical Features of UVY1E102MPD, Nichicon 25 V Aluminum Capacitor, Radial Through-Hole:
Electrical Characteristics of UVY1E102MPD, Nichicon 25 V Aluminum Electrolytic Capacitor, Radial Through-Hole:
Typical Applications:
