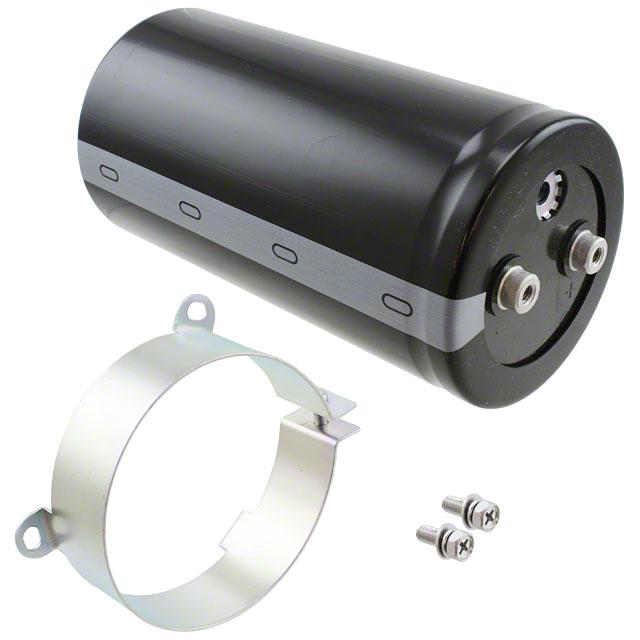

Nichicon LNC2W682MSEH
Product Information
Diameter:
76.2mm
Ripple Current:
23.8A
Polarised:
Polar
Dimensions:
76.2 Dia. x 145mm
Mounting Type:
Screw Mount
Series:
NC
Dissipation Factor:
0.2%
Height:
145mm
Capacitance:
6800µF
Voltage:
450V dc
Leakage Current:
5 mA
Lifetime:
5000h
Lead Pitch:
31.8mm
Maximum Operating Temperature:
+85°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Technology:
Electrolytic
Ratings:
-
HTSUS:
8532.22.0085
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
6800 µF
Operating Temperature:
-40°C ~ 85°C
Package / Case:
Radial, Can - Screw Terminals
Tolerance:
±20%
Voltage - Rated:
450 V
Height - Seated (Max):
5.827" (148.00mm)
Ripple Current @ High Frequency:
33.32 A @ 10 kHz
REACH Status:
REACH Affected
Ripple Current @ Low Frequency:
23.8 A @ 120 Hz
Applications:
General Purpose
Surface Mount Land Size:
-
Package:
Bulk
Size / Dimension:
3.000" Dia (76.20mm)
standardLeadTime:
62 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Chassis Mount
Series:
LNC
Lifetime @ Temp.:
5000 Hrs @ 85°C
Lead Spacing:
1.252" (31.80mm)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search LNC2W682MSEH on website for other similar products.
We accept all major payment methods for all products including ET10836173. Please check your shopping cart at the time of order.
You can order Nichicon brand products with LNC2W682MSEH directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminium Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nichicon LNC2W682MSEH. You can also check on our website or by contacting our customer support team for further order details on Nichicon LNC2W682MSEH.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10836173 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nichicon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10836173.
Yes. We ship LNC2W682MSEH Internationally to many countries around the world.
This is manufactured by Nichicon. The manufacturer part number is LNC2W682MSEH. Its diameter is 76.2mm. Furthermore, 23.8a is the ripple current. Furthermore, it is polar polarised. The given dimensions of the product include 76.2 dia. x 145mm. The product is available in screw mount configuration. The product nc, is a highly preferred choice for users. It provides a dissipation factor of 0.2%. In addition, the height is 145mm. It provides a 6800µf of capacitance value. It carries a 450v dc of voltage. It harbors 5 ma of leakage current. It provides a long-lasting service for a period of 5000h. The lead features 31.8mm pitch. It has a maximum operating temperature of +85°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. This product use electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0085. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 6800 µf of capacitance value. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in radial, can - screw terminals. It also exhibits voltage rating of 450 v. It has the maximum seated height of 5.827" (148.00mm). Additionally, it carries a ripple current and high frequency of 33.32 a @ 10 khz. In addition, it is reach affected. Its ripple current at low frequency is 23.8 a @ 120 hz. The product is widely employed in general purpose. It is shipped in bulk package . The product's diameters include 3.000" dia (76.20mm). It has a long 62 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The product is available in chassis mount configuration. The product lnc, is a highly preferred choice for users. This product offers longer life span for 5000 hrs @ 85°c. It is assigned with 1.252" (31.80mm) of lead spacing. The product is designated with the ear99 code number.
