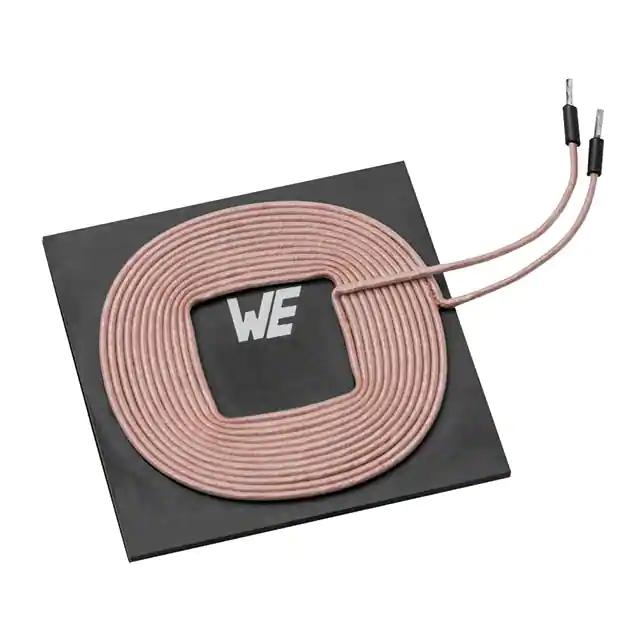

Würth Elektronik 760308103102

760308103102 Würth Elektronik
Würth Elektronik

Product Information

Function:
Transmitter
Size / Dimension:
1.79" L x 2.09" W x 0.18" H (45.5mm x 53.0mm x 4.5mm)
Type:
1 Coil, 1 Layer
Frequency - Self Resonant:
11MHz
DC Resistance (DCR):
55mOhm Max
Current - Saturation (Isat):
10A
Series:
WE-WPCC
Detailed Description:
1 Coil, 1 Layer 10µH Wireless Charging Coil Transmitter 55mOhm Max
Manufacturer Standard Lead Time:
40 Weeks
Packaging:
Tray
Operating Temperature:
-20°C ~ 105°C
Customer Reference:
Inductance:
10µH
Q @ Freq:
130 @ 125kHz
Tolerance:
±10%
Current Rating (Amps):
7A
Manufacturer:
Würth Elektronik
Checking for live stock

This is manufactured by Würth Elektronik. The manufacturer part number is 760308103102. It performs basic function of transmitter. The product's diameters include 1.79" l x 2.09" w x 0.18" h (45.5mm x 53.0mm x 4.5mm). It comes in 1 coil, 1 layer configuration. 11mhz is the self-resonant frequency of the product. It allows DC resistance of 55mohm max. It has a 10a saturation current. The product we-wpcc, is a highly preferred choice for users. It features 1 coil, 1 layer 10µh wireless charging coil transmitter 55mohm max. It has typical 40 weeks of manufacturer standard lead time. In addition, tray is the available packaging type of the product. The product has -20°c ~ 105°c operating temperature range. The product has a 10µh inductance value. It has a typical frequency of 130 @ 125khz. It features ±10% of tolerance value. Additionally, the product's output is 7a. The würth elektronik's product offers user-desired applications.
