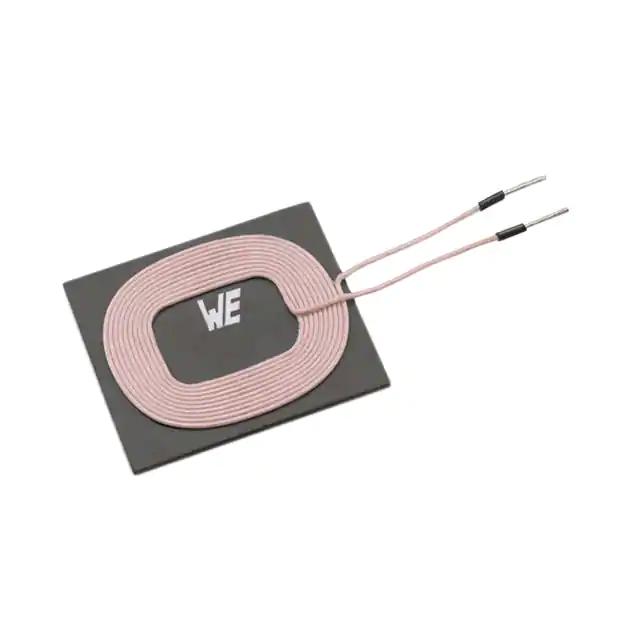

Würth Elektronik 760308103146

760308103146 Würth Elektronik
Würth Elektronik

Product Information

Function:
Transmitter
Size / Dimension:
2.01" L x 1.85" W x 0.18" H (51.0mm x 47.0mm x 4.5mm)
Type:
1 Coil, 1 Layer
Frequency - Self Resonant:
11MHz
DC Resistance (DCR):
56mOhm Max
Current - Saturation (Isat):
16A
Series:
WE-WPCC
Detailed Description:
1 Coil, 1 Layer 8.5µH Wireless Charging Coil Transmitter 56mOhm Max
Manufacturer Standard Lead Time:
16 Weeks
Packaging:
Tray
Operating Temperature:
-20°C ~ 60°C
Customer Reference:
Inductance:
8.5µH
Q @ Freq:
140 @ 125kHz
Tolerance:
±10%
Current Rating (Amps):
8A
Manufacturer:
Würth Elektronik
Checking for live stock

This is manufactured by Würth Elektronik. The manufacturer part number is 760308103146. It performs basic function of transmitter. The product's diameters include 2.01" l x 1.85" w x 0.18" h (51.0mm x 47.0mm x 4.5mm). It comes in 1 coil, 1 layer configuration. 11mhz is the self-resonant frequency of the product. It allows DC resistance of 56mohm max. It has a 16a saturation current. The product we-wpcc, is a highly preferred choice for users. It features 1 coil, 1 layer 8.5µh wireless charging coil transmitter 56mohm max. It has typical 16 weeks of manufacturer standard lead time. In addition, tray is the available packaging type of the product. The product has -20°c ~ 60°c operating temperature range. The product has a 8.5µh inductance value. It has a typical frequency of 140 @ 125khz. It features ±10% of tolerance value. Additionally, the product's output is 8a. The würth elektronik's product offers user-desired applications.

pdf icon
760308103146 Drawing(Datasheets)
pdf icon
RoHS Cert(Environmental Information)
pdf icon
WE-WPCC Assembly Chgs 17/Jul/2019(PCN Assembly/Origin)
