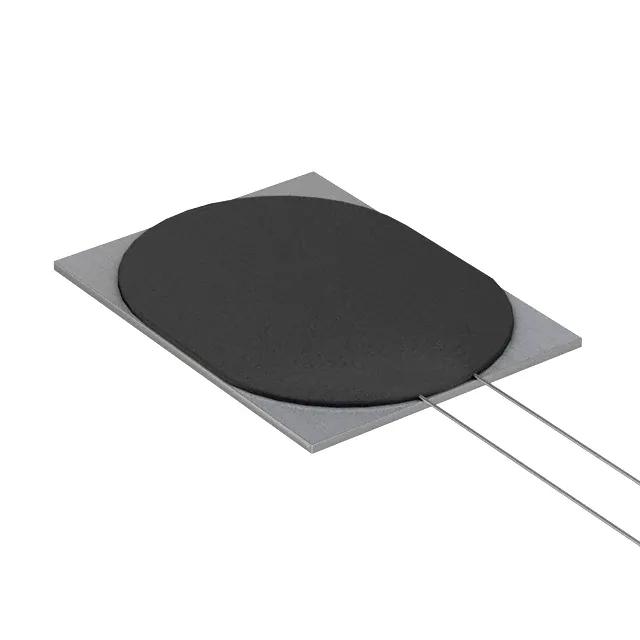

Würth Elektronik 760308103206

760308103206 Würth Elektronik
760308103206
Würth Elektronik

Product Information

Function:
Receiver
Size / Dimension:
1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.7mm)
Type:
1 Coil, 1 Layer
Frequency - Self Resonant:
23MHz
DC Resistance (DCR):
340mOhm
Current - Saturation (Isat):
3A
Series:
WE-WPCC
Detailed Description:
1 Coil, 1 Layer 7.5µH Wireless Charging Coil Receiver 340mOhm
Manufacturer Standard Lead Time:
16 Weeks
Packaging:
Box
Operating Temperature:
-20°C ~ 105°C
Customer Reference:
Inductance:
7.5µH
Q @ Freq:
16 @ 125kHz
Tolerance:
±10%
Current Rating (Amps):
1.55A
Manufacturer:
Würth Elektronik
Checking for live stock

This is manufactured by Würth Elektronik. The manufacturer part number is 760308103206. It performs basic function of receiver. The product's diameters include 1.10" l x 0.59" w x 0.03" h (28.0mm x 15.0mm x 0.7mm). It comes in 1 coil, 1 layer configuration. 23mhz is the self-resonant frequency of the product. It allows DC resistance of 340mohm. It has a 3a saturation current. The product we-wpcc, is a highly preferred choice for users. It features 1 coil, 1 layer 7.5µh wireless charging coil receiver 340mohm. It has typical 16 weeks of manufacturer standard lead time. In addition, box is the available packaging type of the product. The product has -20°c ~ 105°c operating temperature range. The product has a 7.5µh inductance value. It has a typical frequency of 16 @ 125khz. It features ±10% of tolerance value. Additionally, the product's output is 1.55a. The würth elektronik's product offers user-desired applications.

pdf icon
RoHS Cert(Environmental Information)
pdf icon
WE-WPCC Assembly Chgs 17/Jul/2019(PCN Assembly/Origin)
pdf icon
760308103206 Drawing(Datasheets)
