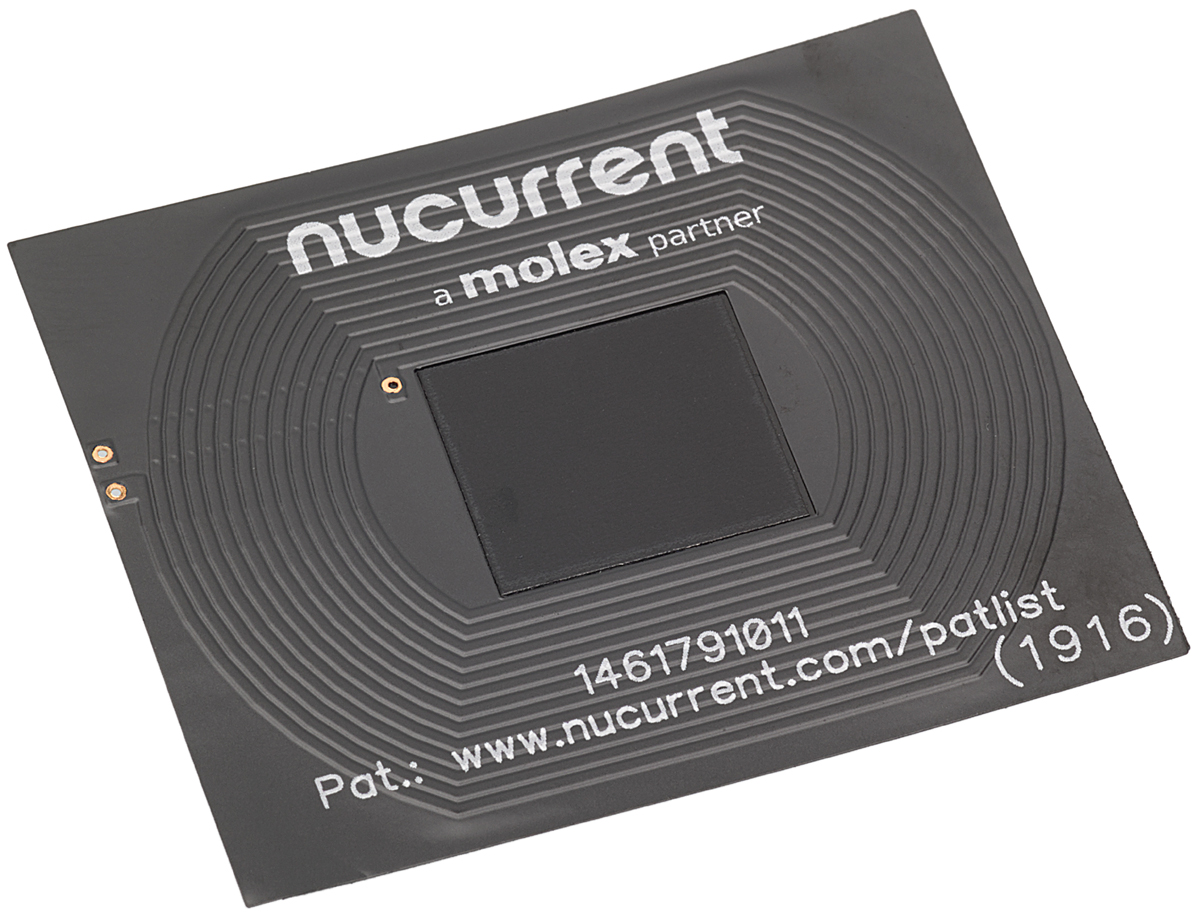

Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo
manufacturer logo

Manufacturer : Molex
Manufacturer Part No : 146179-1011
Enrgtech Part No : ET16826017
Product Range : PolySwitch RXEF Series

Molex Wireless Charging Receiver Coil, Copper, 390mΩ, 23 Q Factor

Molex Wireless Charging Coils with NuCurrent Technology Molex wireless charging coils support low,high and proprietry frequencies.The compact coils are ideal for a varied range of applications and are ideal for space constrained devices.The coils are produced on standard PCB or copper flex which withstands enviroments with high vibration, heat and humidity. Applications Smartphones Personal Computers Digital Cameras Bluetooth Headsets Keyboards Gaming Systems Low Power Applications

Product Information

Function : Receiver
Maximum DC Resistance : 390mΩ
Dimensions : 40 x 47 x 0.52mm
Series : 146179
Q Factor : 23
Height : 0.52mm
Width : 47mm
Length : 40mm
Core Material : Copper
Inductance : 9.9 μH
Maximum Operating Temperature : +40°C
Minimum Operating Temperature : -10°C
rohs : RoHS Certificate of Compliance

Technical Documents

  • Molex 146179-1011 Wireless Charging Coil Datasheet (Technical Reference)
  • Molex 146179-1011 Wireless Charging Coil Information Sheet (Technical Reference)
  • Molex 146179-1011 Wireless Charging Coil Series Datasheet (Technical Reference)

Availability:
200
in stock
