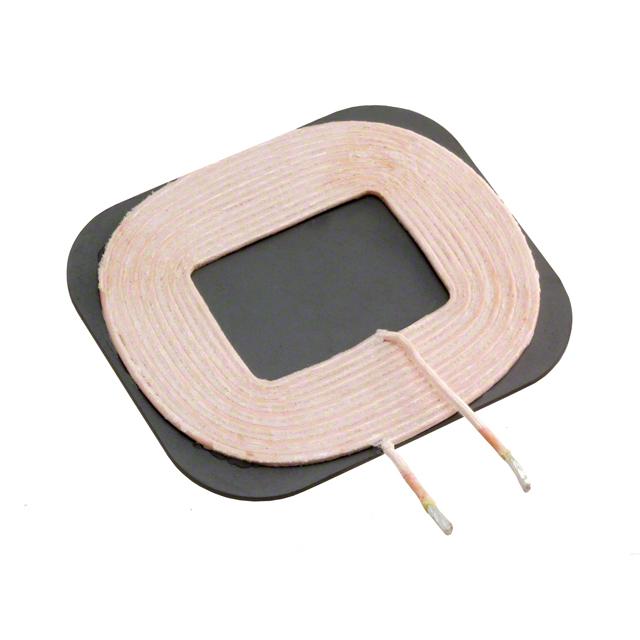

Laird-Signal Integrity Products SWC5547AK120-500

SWC5547AK120-500 Laird-Signal Integrity Products
Laird-Signal Integrity Products

Product Information

HTSUS:
8504.50.4000
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 125°C
Tolerance:
±10%
Function:
Transmitter
DC Resistance (DCR):
65mOhm Max
Type:
1 Coil, 1 Layer
REACH Status:
REACH Unaffected
edacadModel:
SWC5547AK120-500 Models
Inductance:
12.5µH
edacadModelUrl:
/en/models/5230563
Package:
Box
Size / Dimension:
2.173" L x 1.858" W x 0.118" H (55.20mm x 47.20mm x 3.00mm)
Current - Saturation (Isat):
-
standardLeadTime:
24 Weeks
Current Rating (Amps):
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
-
Series:
SWC
Q @ Freq:
90 @ 100kHz
ECCN:
EAR99
Checking for live stock

This is manufactured by Laird-Signal Integrity Products. The manufacturer part number is SWC5547AK120-500. It is assigned with possible HTSUS value of 8504.50.4000. The product is rohs3 compliant. The product has -40°c ~ 125°c operating temperature range. It features ±10% of tolerance value. It performs basic function of transmitter. It allows DC resistance of 65mohm max. It comes in 1 coil, 1 layer configuration. In addition, it is reach unaffected. The product has a 12.5µh inductance value. It is shipped in box package . The product's diameters include 2.173" l x 1.858" w x 0.118" h (55.20mm x 47.20mm x 3.00mm). It has a long 24 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product swc, is a highly preferred choice for users. It has a typical frequency of 90 @ 100khz. The product is designated with the ear99 code number.

pdf icon
SWC5547AK120-500 Datasheet(Datasheets)
pdf icon
Ferrite EMI Cable Cores Catalog(Datasheets)
pdf icon
SWC5547AK120-500 Drawing(Product Drawings)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search SWC5547AK120-500 on website for other similar products.
We accept all major payment methods for all products including ET11945815. Please check your shopping cart at the time of order.
You can order Laird-Signal Integrity Products brand products with SWC5547AK120-500 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Wireless Charging Coils category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Laird-Signal Integrity Products SWC5547AK120-500. You can also check on our website or by contacting our customer support team for further order details on Laird-Signal Integrity Products SWC5547AK120-500.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11945815 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Laird-Signal Integrity Products" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11945815.
Yes. We ship SWC5547AK120-500 Internationally to many countries around the world.
