WAGO Corporation 2086-1206

Enrgtech Part No: ET22290715
|
Manufacturer Part No:
2086-1206
|
Manufacturer: WAGO Corporation

(0)

Product Information

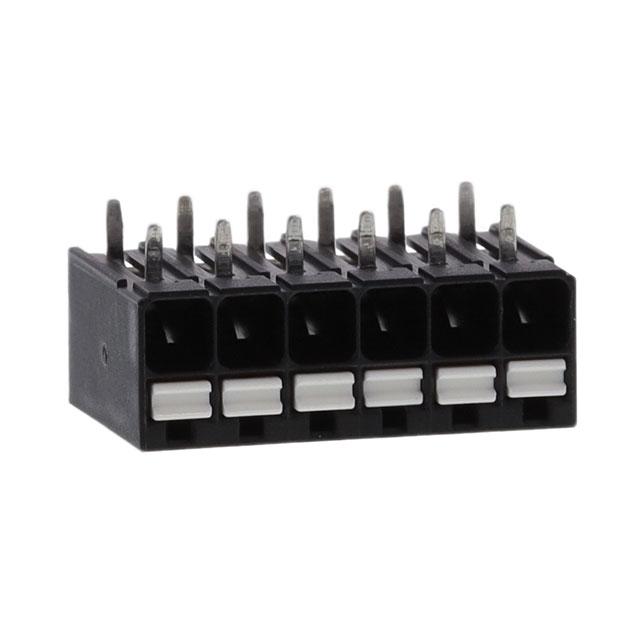

The 2086-1206 is a versatile six-position PCB terminal block designed to optimise wire connections on printed circuit boards. The block is ideal for consumer electronics, industrial automation, LED lighting, power supplies, and automotive electronics.

HTSUS:

8536.90.4000

RoHS Status:

ROHS3 Compliant

Current:

10 A

Operating Temperature:

-60°C ~ 105°C

Contact Material - Plating:

Electrolytic Copper - Tin Plated

Mating Orientation:

Horizontal with Board

Screw Thread:

REACH Status:

REACH Unaffected

Wire Termination:

Screwless - Push Button Clamp

Package:

Tray

Wire Gauge:

16-24 AWG

Clamp Material - Plating:

Steel - Nickel Plated

Checking for live stock

The WAGO Corporation 2086-1206 is a versatile 6-position PCB terminal block built to streamline wire connections in printed circuit board (PCB) applications. The block's well-engineered features offer numerous benefits for different connectivity requirements.

The WAGO Corporation 2086-1206: Unique Features

6-Position Configuration: Equipped with 6 positions, allowing for organised and compact wire connections within a single terminal block.
Side Entry Design: Features a side entry design, enabling easy insertion of wires from the side, optimising space usage.
3.5mm Pitch: Utilises a 3.5mm pitch, providing compatibility with various wire sizes and enhancing flexibility in wiring designs.
PCB Mountable: Designed for easy and secure installation onto PCBs, simplifying assembly processes.

Application Potential:

Consumer Electronics: Suitable for various consumer electronic devices such as audio equipment, appliances, and control panels.
Industrial Automation: Used in control panels, automation systems, and machinery to establish organised connections for signal transmission.
Telecommunications: Supports connections in networking equipment, including routers, switches, and communication devices.
LED Lighting: Incorporated into LED lighting systems for efficient wire connections between lighting modules and drivers.
Power Supplies: Used in power supply units to ensure secure and reliable power distribution within electronic devices.
Automotive Electronics: Supports wire connections in automotive systems, such as lighting, sensors, and control devices.

Significant Benefits:

Space Optimisation
Organised Wiring
Compatible with Various Wire Sizes
Efficient Assembly
