HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Housing Material:
-
Operating Temperature:
-
Contact Material - Plating:
-
Mating Orientation:
Horizontal with Board
Screw Thread:
M3
Wire Termination:
Screw - Rising Cage Clamp
Package:
Bulk
Wire Gauge:
12-30 AWG
Clamp Material - Plating:
-
Screw Material - Plating:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Levels:
1
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
4 Weeks
Current:
20 A
Features:
-
Mounting Type:
Through Hole
Color:
Red
Series:
COMBICON MKDSO
Positions Per Level:
4
Voltage:
300 V
Pitch:
0.197" (5.00mm)
ECCN:
EAR99
Housing Material:
Polyamide
Number of Contacts:
4
Maximum Wire Size mm²:
2.5mm²
Wire Connection Method:
Screw
Minimum Wire Size mm²:
0.14mm²
Series:
MKDSO
Colour:
Red
Minimum Wire Size AWG:
26 AWG
Current:
24A
Width:
20.95 mm
Length:
15.3mm
Number of Rows:
1
Standards/Approvals:
JEDEC JESD 201, UL 94 V0, VDE, CSA, cULus, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-82, IEC 60112, IEC 60512-3-1:2002-02, IEC 60664-1:2007-04, IEC 60947-7-4:2019-01, IEC 60999-1:1999-11
Voltage:
40 V
Pitch:
5mm
Maximum Wire Size AWG:
14 AWG

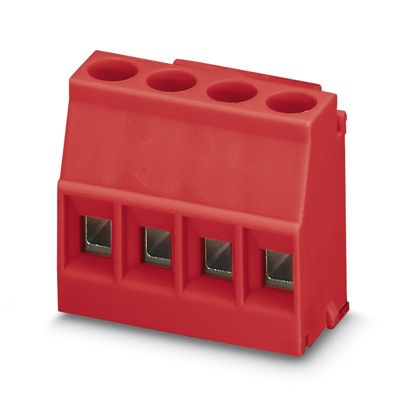

Product Type:
PCB Terminal Block
Mount Type:
Wave Soldering Mount
