HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Contact Material - Plating:
-
Mating Orientation:
35° (145°) Angle with Board
Screw Thread:
M3
Wire Termination:
Screw - Rising Cage Clamp
Package:
Bulk
Wire Gauge:
12-30 AWG
Clamp Material - Plating:
-
Screw Material - Plating:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Levels:
1
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
10 Weeks
Current:
10 A
Features:
Interlocking (Side)
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON SMKDS
Positions Per Level:
15
Voltage:
300 V
Pitch:
0.200" (5.08mm)
ECCN:
EAR99
Housing Material:
Polyamide
Number of Contacts:
15
Orientation:
55°
Wire Connection Method:
Screw Connection with Tension Sleeve
Minimum Wire Size mm²:
0.2mm²
Series:
SMKDS 3
Colour:
Green
Minimum Wire Size AWG:
24 AWG
Maximum Wire Size mm²:
4mm²
Current:
24A
Width:
76.2 mm
Length:
16mm
Number of Rows:
1
Standards/Approvals:
IEC 60999-1:1999-11, VDE Approval ID: 40055394, UL 94 V0, IEC 60947-7-4:2019-01, IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, IEC 60512-3-1:2002-02, IEC 60112, EN 60695-2-13, EN 60695-2-12, EN 60695-10-2, cULus Recognised Approval ID: E60425-19870331, CSA Approval ID: 13631
Voltage:
40 V
Pitch:
5.08mm
Maximum Wire Size AWG:
12 AWG

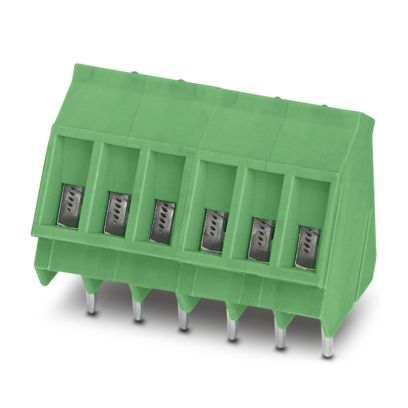

Product Type:
PCB Terminal Block
Mount Type:
Wave Soldering Mount
