Housing Material:
Polyamide
Number of Contacts:
2
Orientation:
0°
Wire Connection Method:
Screw Connection with Tension Sleeve
Minimum Wire Size mm²:
0.2mm²
Series:
MKDS
Colour:
Green
Minimum Wire Size AWG:
24 AWG
Maximum Wire Size mm²:
4mm²
Current:
24A
Width:
10.16 mm
Length:
11.2mm
Number of Rows:
1
Standards/Approvals:
EN 60695-10-2, CSA, cULus, DNV GL, EN 60695-2-12, EN 60695-2-13, IEC 60112, IEC 60664-1:2007-04, IEC 60668-2-82/JEDEC JESD 201, UL 94 V0, VDE
Voltage:
40 V
Pitch:
5.08mm
Maximum Wire Size AWG:
12 AWG

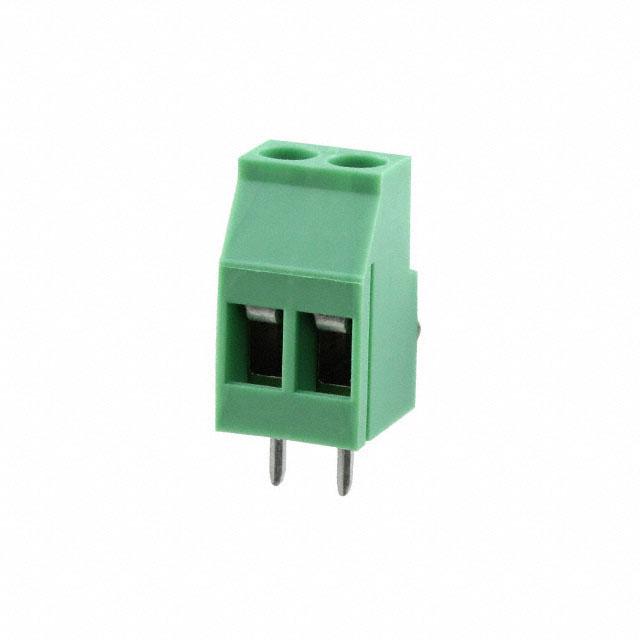

Product Type:
PCB Terminal Block
Mount Type:
Wave Soldering Mount
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Current:
15 A
Operating Temperature:
-
Contact Material - Plating:
-
Mating Orientation:
Horizontal with Board
Screw Thread:
M3
REACH Status:
REACH Unaffected
edacadModel:
1707904 Models
edacadModelUrl:
/en/models/2511052
Wire Termination:
Screw - Rising Cage Clamp
Package:
Bulk
Wire Gauge:
12-30 AWG
Clamp Material - Plating:
-
Screw Material - Plating:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Levels:
1
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
7 Weeks
Housing Material:
Polyamide (PA), Nylon
Features:
Interlocking (Side)
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON MKDS
Positions Per Level:
2
Voltage:
300 V
Pitch:
0.200" (5.08mm)
ECCN:
EAR99
