On Shore Technology Inc. ED3000/6
Product Information

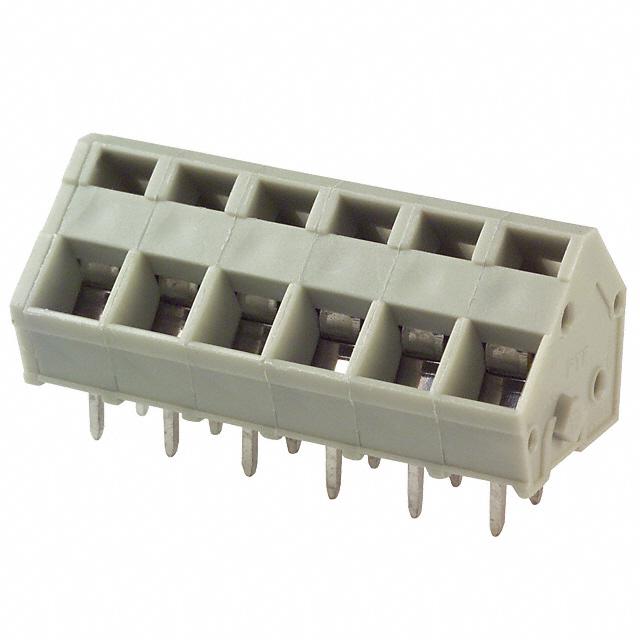

The ED3000/6 is a versatile 6-way terminal block connector designed for efficient PCB wiring. Built using high-quality materials, it guarantees secure connections and is an indispensable tool for various electronic applications.
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Current:
16 A
Operating Temperature:
-30°C ~ 105°C
Contact Material - Plating:
-
Mating Orientation:
45° (135°) Angle with Board
Screw Thread:
-
REACH Status:
REACH Unaffected
Wire Termination:
Screwless - Leg Spring, Push-In Spring
Package:
Bulk
Wire Gauge:
14-28 AWG
Clamp Material - Plating:
Copper
Screw Material - Plating:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Levels:
1
Torque - Screw:
-
standardLeadTime:
25 Weeks
Housing Material:
Polyamide (PA), Nylon
Features:
Interlocking (Side)
Mounting Type:
Through Hole
Color:
Gray, Slate
Series:
ED3000
Positions Per Level:
6
Voltage:
300 V
Pitch:
0.197" (5.00mm)
Base Product Number:
ED3000
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ED3000/6 on website for other similar products.
We accept all major payment methods for all products including ET11582469. Please check your shopping cart at the time of order.
You can order On Shore Technology Inc. brand products with ED3000/6 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Wire to Board category are shipped in lowest possible time.
You will get a confirmation email regarding your order of On Shore Technology Inc. ED3000/6. You can also check on our website or by contacting our customer support team for further order details on On Shore Technology Inc. ED3000/6.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11582469 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "On Shore Technology Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET11582469.
Yes. We ship ED3000/6 Internationally to many countries around the world.
The ED3000/6 is a six-position terminal block engineered to facilitate efficient and convenient PCB wiring. Terminal blocks play a critical role in industrial, automotive, and electronic applications where stable and secure connections are essential for optimal performance. Its space-saving design, robust construction, fast connections, versatility, and compliance with industry standards make it an excellent choice for various electronic applications.
The ED3000/6 boasts a compact form factor with a 45-degree orientation, making it ideal for space-constrained PCB layouts. Its streamlined design optimises board real estate while ensuring a clean, organised wiring arrangement.
Built to withstand harsh operating conditions, the ED3000/6 features a rugged construction using high-quality materials. Its durable housing protects against mechanical stress, temperature variations, and vibrations, ensuring a long operational life.
With six positions, the terminal block enables secure wire-to-board connections, guaranteeing stable and reliable signal transmission. It is equipped with easy-to-use wire clamps that firmly grip conductors, reducing the risk of accidental disconnections.
The terminal block features a user-friendly design, simplifying the installation process. Its plug-and-play functionality ensures swift and hassle-free integration onto the PCB, saving valuable time during assembly.
The On Shore Technology Inc. ED3000/6: Versatile Applications:
The ED3000/6 finds applications across various industries, including:
