Housing Material:
Polyamide
Number of Contacts:
2
Orientation:
45°
Wire Connection Method:
Push-in Spring
Minimum Wire Size mm²:
0.2mm²
Series:
MFKDSP
Colour:
Green
Minimum Wire Size AWG:
24 AWG
Maximum Wire Size mm²:
1.5mm²
Current:
12A
Width:
10.16 mm
Length:
16.2mm
Number of Rows:
1
Standards/Approvals:
IEC 60999-1:1999-11, CSA Approval ID: 13631, cULus Recognised Approval ID: E60425-19870330, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-82/JEDEC JESD 201, IEC 60112, IEC 60512-3-1:2002-02, IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, IEC 60947-7-4:2019-01, UL 94 V0
Voltage:
32 V
Pitch:
5.08mm
Maximum Wire Size AWG:
16 AWG

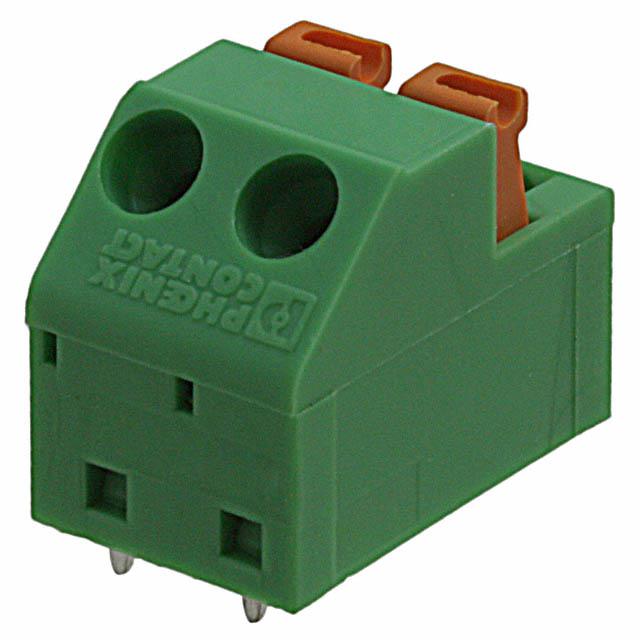

Product Type:
PCB Terminal Block
Mount Type:
Wave Soldering Mount
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Current:
3.6 A
Operating Temperature:
-
Contact Material - Plating:
-
Mating Orientation:
45° (135°) Angle with Board
Screw Thread:
-
REACH Status:
REACH Unaffected
edacadModel:
1790283 Models
edacadModelUrl:
/en/models/2177768
Wire Termination:
Screwless - Spring Cage, Tension Clamp
Package:
Bulk
Wire Gauge:
18-22 AWG
Clamp Material - Plating:
-
Screw Material - Plating:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Levels:
1
Torque - Screw:
-
standardLeadTime:
7 Weeks
Housing Material:
Polyamide (PA), Nylon
Features:
Lever Actuated
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON MFKDSP
Positions Per Level:
2
Voltage:
300 V
Pitch:
0.200" (5.08mm)
ECCN:
EAR99
