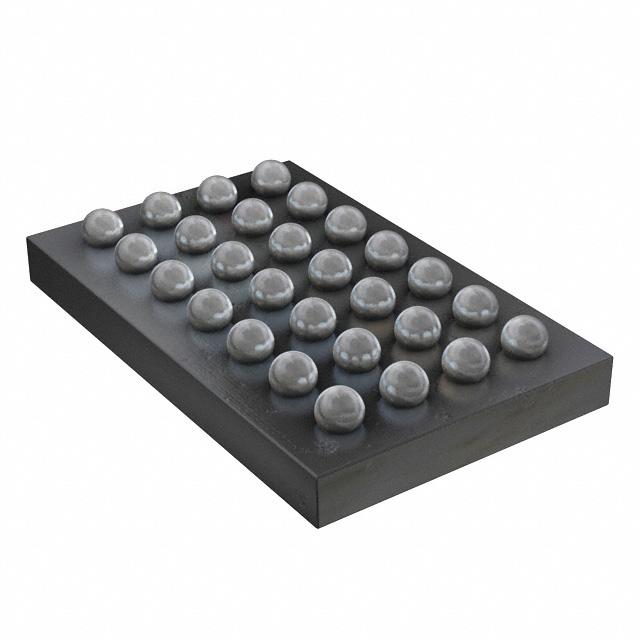

Analog Devices Inc./Maxim Integrated MAX15118EWI+T

MAX15118EWI-T Analog Devices Inc./Maxim Integrated MAX15118EWI+T
Analog Devices Inc./Maxim Integrated

Product Information

Synchronous Rectifier:
Yes
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C (TA)
Package / Case:
28-WFBGA, WLBGA
Voltage - Input (Min):
2.7V
Function:
Step-Down
edacadModel:
MAX15118EWI+T Models
Voltage - Output (Min/Fixed):
0.6V
Frequency - Switching:
1MHz
REACH Status:
REACH Unaffected
Output Type:
Adjustable
Current - Output:
18A
Voltage - Input (Max):
5.5V
edacadModelUrl:
/en/models/5820923
Voltage - Output (Max):
5.17V
Topology:
Buck
Package:
Cut Tape (CT)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
28-WLP (2.07x3.53)
Base Product Number:
MAX15118
Output Configuration:
Positive
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock

This is manufactured by Analog Devices Inc./Maxim Integrated. The manufacturer part number is MAX15118EWI+T. This also includes yes synchronous rectifier. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 85°c (ta) operating temperature range. Moreover, the product comes in 28-wfbga, wlbga. It offers 2.7v of minimum input voltage. It performs basic function of step-down. The minimum or fixed output voltage include 0.6v. The switching frequency of the standard product is 1mhz. In addition, it is reach unaffected. Furthermore, it has aadjustable output. While, the output current includes 18a. Its maximum input voltage is 5.5v. While the maximum output voltage is 5.17v. Topology includes buck. It is shipped in cut tape (ct) package . Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. 28-wlp (2.07x3.53) is the supplier device package value. Moreover, it corresponds to max15118, a base product number of the product. It boasts positive output configuration. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number.

pdf icon
Maxim Integrated RoHS Cert(Environmental Information)
pdf icon
Maxim Integrated REACH(Environmental Information)
pdf icon
Part Numbering System(Part Numbering Guide)
pdf icon
Mult Dev Retraction/EOL 20/Mar/2020(PCN Obsolescence/ EOL)
pdf icon
EE-Sim Design, Simulation Environment Guide(Datasheets)
pdf icon
MAX15118(Datasheets)
pdf icon
Power-Supply Solutions for Xilinx FPGAs(Mfg Application Notes)
pdf icon
Power-Supply Solutions for Altera FPGAs(Mfg Application Notes)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search MAX15118EWI+T on website for other similar products.
We accept all major payment methods for all products including ET22649983. Please check your shopping cart at the time of order.
You can order Analog Devices Inc./Maxim Integrated brand products with MAX15118EWI+T directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Voltage Regulators - DC DC Switching Regulators category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices Inc./Maxim Integrated MAX15118EWI+T. You can also check on our website or by contacting our customer support team for further order details on Analog Devices Inc./Maxim Integrated MAX15118EWI+T.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22649983 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices Inc./Maxim Integrated" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22649983.
Yes. We ship MAX15118EWI+T Internationally to many countries around the world.
