Analog Devices Inc. ADP2390ACPZ-R7
Product Information
Synchronous Rectifier:
Yes
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 125°C (TJ)

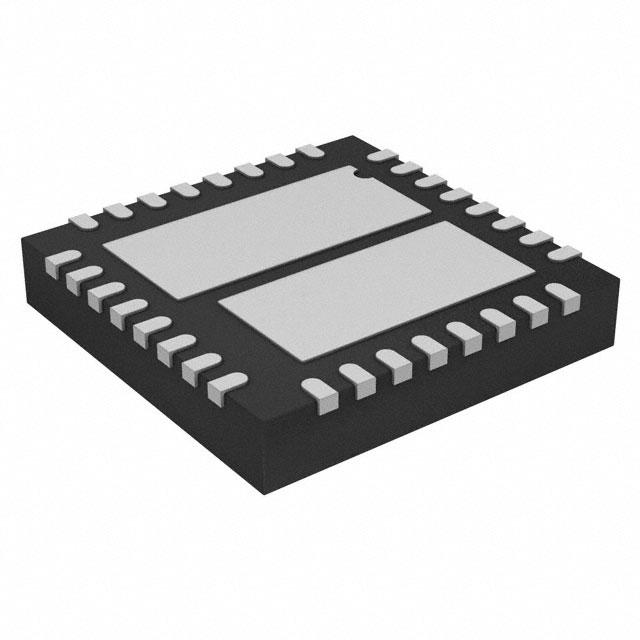

Package / Case:
32-VFQFN Exposed Pad, CSP
Voltage - Input (Min):
4.5V
Function:
Step-Down
Voltage - Output (Min/Fixed):
0.6V
Frequency - Switching:
200kHz ~ 2.2MHz
REACH Status:
REACH Unaffected
Output Type:
Adjustable
edacadModel:
ADP2390ACPZ-R7 Models
Current - Output:
12A
Voltage - Input (Max):
18V
edacadModelUrl:
/en/models/13169958
Voltage - Output (Max):
18V
Topology:
Buck
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
standardLeadTime:
13 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
32-LFCSP-VQ (5x5)
Base Product Number:
ADP2390
Output Configuration:
Positive
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ADP2390ACPZ-R7 on website for other similar products.
We accept all major payment methods for all products including ET20183070. Please check your shopping cart at the time of order.
You can order Analog Devices Inc. brand products with ADP2390ACPZ-R7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Voltage Regulators - DC DC Switching Regulators category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices Inc. ADP2390ACPZ-R7. You can also check on our website or by contacting our customer support team for further order details on Analog Devices Inc. ADP2390ACPZ-R7.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20183070 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET20183070.
Yes. We ship ADP2390ACPZ-R7 Internationally to many countries around the world.
This is manufactured by Analog Devices Inc.. The manufacturer part number is ADP2390ACPZ-R7. This also includes yes synchronous rectifier. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in 32-vfqfn exposed pad, csp. It offers 4.5v of minimum input voltage. It performs basic function of step-down. The minimum or fixed output voltage include 0.6v. The switching frequency of the standard product is 200khz ~ 2.2mhz. In addition, it is reach unaffected. Furthermore, it has aadjustable output. While, the output current includes 12a. Its maximum input voltage is 18v. While the maximum output voltage is 18v. Topology includes buck. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 3 (168 hours). It has a long 13 weeks standard lead time. The product is available in surface mount configuration. 32-lfcsp-vq (5x5) is the supplier device package value. Moreover, it corresponds to adp2390, a base product number of the product. It boasts positive output configuration. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number.
